| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Industrial Grade | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

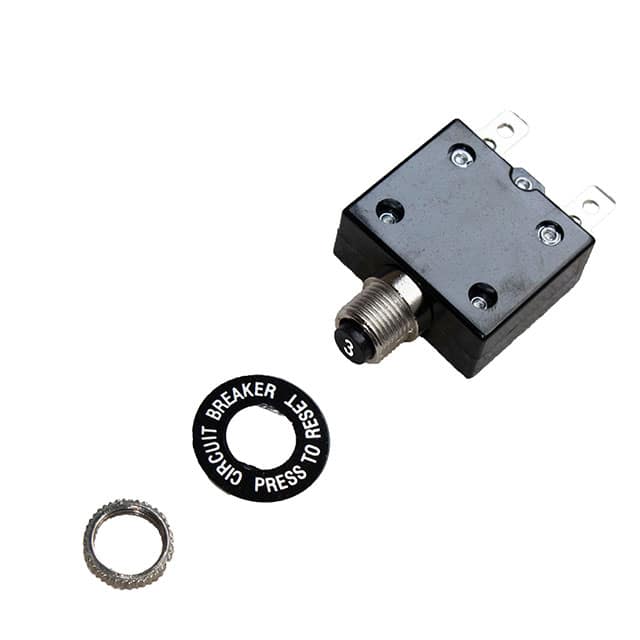

The OptiFuse CBW58-VS-3A-1B is a single-pole, thermal circuit breaker with a push-to-reset actuator. It is designed for panel mounting and offers a current rating of 3A at a voltage rating of 250VAC or 50VDC.
Key specifications include a dielectric strength of 1500 VAC for one minute, an insulation resistance greater than 100M Ω at 500 VDC, and a contact endurance of 500 cycles at 125 VAC with 150% of rated current. The operating ambient temperature range is from -10℃ to +60℃.
This circuit breaker is marine ignition protected according to SAE J1171 and UL1500 standards. It also holds agency approvals including CCC, CSA, cURus, TUV, UR, and VDE for various voltage and current ratings.
With its robust construction and reliable thermal protection, the CBW58-VS-3A-1B is suitable for a variety of applications requiring overcurrent protection.
The current rating is 3A.
The voltage rating is 250 VAC and 50 VDC.
It is designed for panel mounting.
It features a push-to-reset actuator.
Yes, it is protected to SAE J1171 and UL1500 standards.
Approvals include CCC, CSA, cURus, TUV, UR, and VDE.
