| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Tape & Reel | |
| Voltage Rating |

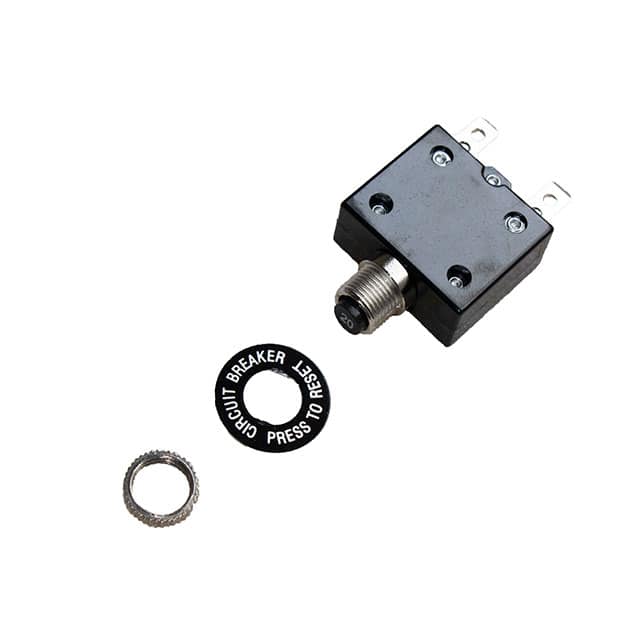

The OptiFuse CBW58-VS-20A-1B is a thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 20A and a voltage rating of 250VAC, with a DC voltage rating of 50VDC.
This circuit breaker features a push-to-reset actuator for easy operation and a standard profile. It is designed for panel mounting, making it suitable for various industrial and commercial applications. The CBW58 series is built to meet agency standards including UR, CCC, TUV, and VDE.
Key specifications include an interrupting rating of 1000A at 125/250VAC, insulation resistance greater than 100M Ω, and a reset time of 60 seconds. The operating ambient temperature range is -10℃ to +60℃. It is also marine ignition protected to SAE J1171 and UL1500 standards.
The CBW58-VS-20A-1B is rated for 20A continuous current.
It is rated for 250VAC at 50-60Hz and 50VDC.
The operating ambient temperature range is -10°C to +60°C.
It uses a push-to-reset actuator.
The interrupting rating is 1000A at 125/250VAC.
Yes, it meets marine ignition protection standards SAE J1171 and UL1500.
It has approvals including UR, CCC, TUV, VDE, CSA, and cURus.
