| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| SVHC Present | |
| Voltage Rating |

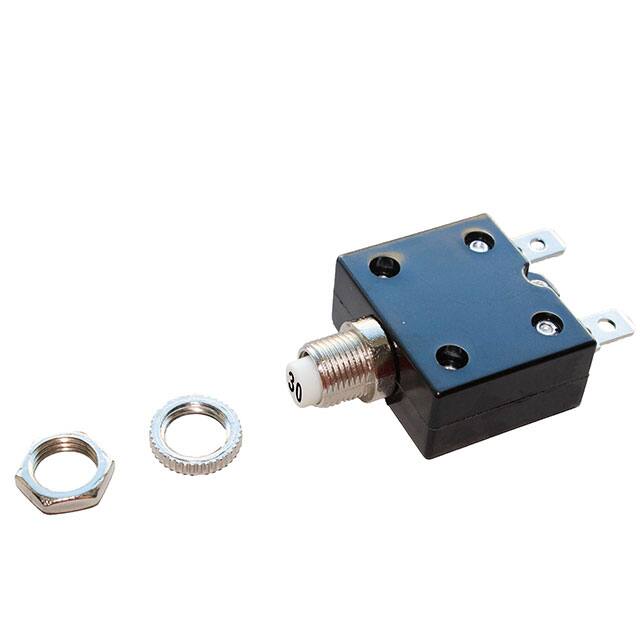

The OptiFuse CBW58-HS-30A-5C is a thermal circuit breaker designed for reliable overcurrent protection. It offers a current rating of 30A and a voltage rating of 250VAC, with a DC voltage rating of 50VDC.
This circuit breaker features a push-to-reset actuator for easy operation and a standard profile. It is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems. The thermal trip mechanism provides protection against sustained overloads.
Key specifications include a dielectric strength of 1500 VAC for one minute, an insulation resistance greater than 100MΩ at 500 VDC, and a contact endurance of 500 cycles at 125 VAC with 150% of rated current. The operating ambient temperature range is -10℃ to +60℃.
Agency approvals include CCC, CSA, cURus, TUV, and UR, indicating compliance with various safety standards. The circuit breaker is also marine ignition protected to SAE J1171 and UL1500.
250VAC and 50VDC.
Panel mount.
-10°C to +60°C.
1000A at 125/250VAC and 300A at 50VDC.
Push-to-reset.
1 pole.
Yes, to SAE J1171 and UL1500.
