| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

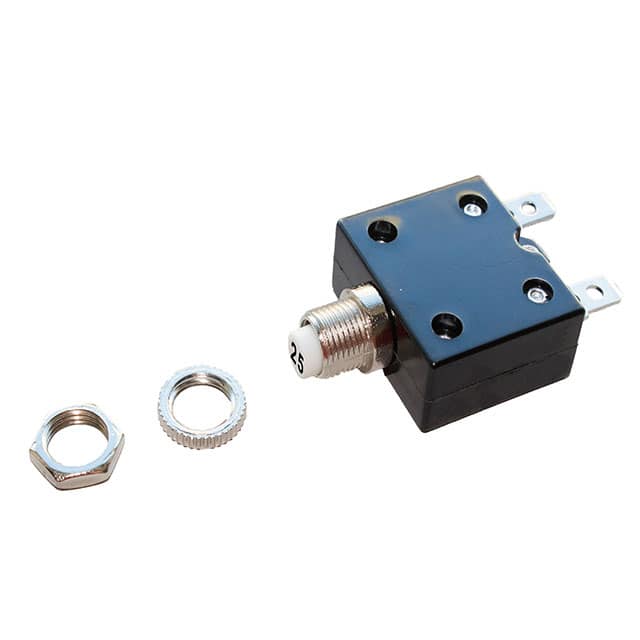

The OptiFuse CBW58-HS-25A-5C is a thermal circuit breaker designed for reliable overcurrent protection. It offers a current rating of 25A and can handle voltages up to 250 VAC and 50 VDC.
This circuit breaker features a convenient push-to-reset actuator, allowing for easy manual reset after a trip event. Its panel mount design facilitates straightforward integration into various electrical enclosures and systems.
Key specifications include a frequency range of 50-60 Hz, a dielectric strength of 1500 VAC, and an insulation resistance greater than 100MΩ. The device is also marine ignition protected according to SAE J1171 and UL1500 standards, making it suitable for marine applications.
Agency approvals include CCC, CSA, cURus, TUV, and UR, indicating compliance with various safety and performance standards. The operating ambient temperature range is -10℃ to +60℃.
250VAC and 50VDC.
1000A at 125/250VAC, 400A at 125/250VAC, and 300A at 50VDC.
-10°C to +60°C.
60 seconds.
Yes, it meets SAE J1171 and UL1500 standards.
Panel mount with push-to-reset actuation.
1500 VAC for 1 minute.
