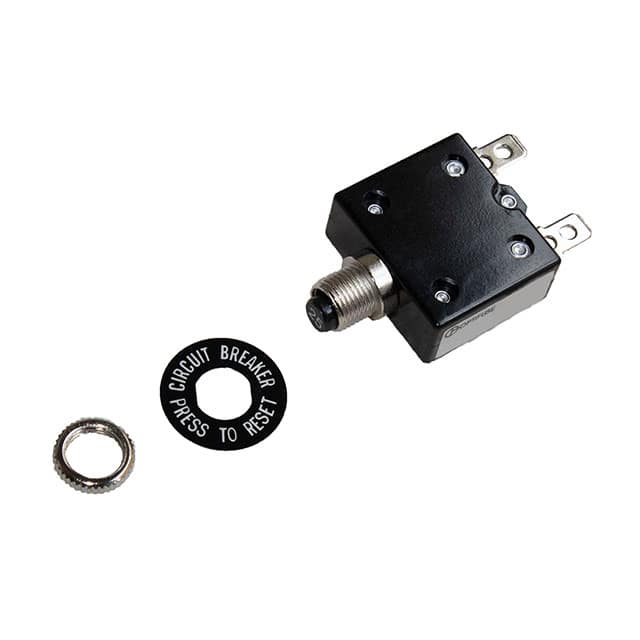

The OptiFuse CBW58-HS-25A-1B is a thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 25A and can handle input voltages of up to 250 VAC or 50 VDC.
This circuit breaker features a push-to-reset actuator for easy operation and a standard profile. It is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems. The device operates within a frequency range of 50-60 Hz.
Key specifications include a dielectric strength of 1500 VAC, an interrupting rating of 1000A at 125/250VAC, and insulation resistance greater than 100M Ω. The operating ambient temperature range is from -10℃ to +60℃. It also meets marine ignition protection standards SAE J1171 and UL1500.
Agency approvals include CCC, CSA, cURus, TUV, and UR, indicating compliance with various industry standards. The OptiFuse CBW58-HS-25A-1B is a robust solution for overcurrent protection in a wide range of applications.
The CBW58-HS-25A-1B has a current rating of 25A.
It supports 250VAC and 50VDC.
The operating ambient temperature range is -10°C to +60°C.
It is a thermal circuit breaker with a push-to-reset actuator.
It is a single-pole (1-pole) circuit breaker.
The interrupting rating is 1000A at 125/250VAC.
