| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

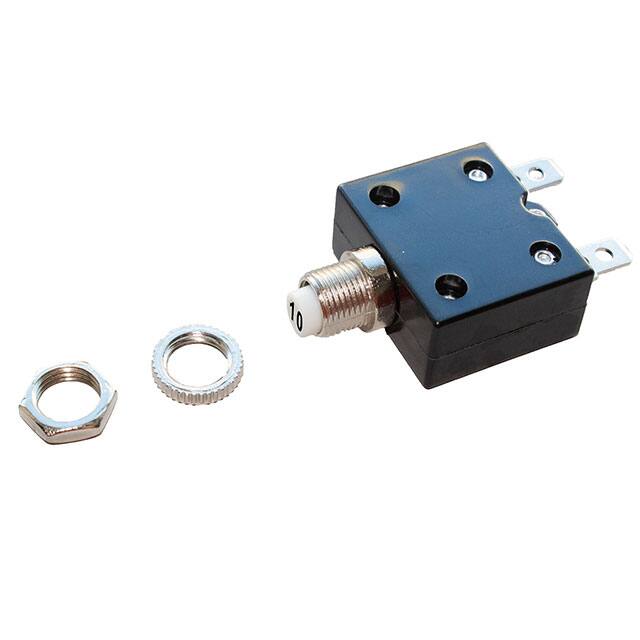

The OptiFuse CBW58-HS-10A-5C is a thermal circuit breaker designed for reliable overcurrent protection. It offers a current rating of 10A and can handle up to 250VAC or 50VDC.
Key electrical specifications include a frequency range of 50-60 Hz and an interrupting rating of 1000A at 125/250VAC. The breaker features a push-to-reset actuator for easy operation and a standard profile for panel mounting.
Environmental considerations include an operating ambient temperature range of -10℃ to +60℃. The unit is also marine ignition protected to SAE J1171 and UL1500 standards. Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as low confidence without verified documentation.
This circuit breaker is suitable for various applications requiring robust thermal protection. Its panel mount design and standard specifications make it a versatile component for electrical systems.
10A
250 VAC or 50 VDC
-10°C to +60°C
Thermal
Push to reset
Yes, to SAE J1171 and UL1500
100% no trip, 150% trip within 1hr, 200% 5-30s trip, 300% 1.5-5s trip
