| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

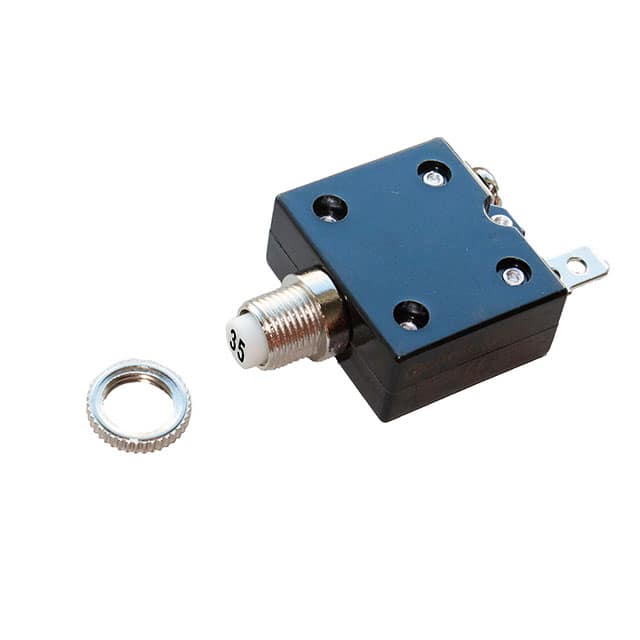

The OptiFuse CBW58-HL4-35A-5 is a thermal circuit breaker designed for circuit protection applications. It offers a current rating of 35A and can handle up to 250 VAC or 50 VDC.
Key specifications include a 50-60 Hz frequency range, 1000A interrupting rating at 125/250VAC, and insulation resistance greater than 100M Ω at 500 VDC. The breaker is built for durability with a contact endurance rating of 500 cycles at 125 VAC with 150% of rated current.
This circuit breaker features a push-to-reset actuator and a panel mount design for easy integration into systems. It operates within an ambient temperature range of -10℃ to +60℃. The unit is also marine ignition protected to SAE J1171 and UL1500 standards.
Agency approvals include UR, CCC, TUV, and VDE, indicating compliance with various industry standards. The RoHS status is RoHS3 Compliant, and it has an MSL of 1 Unlimited.
Rated for 250VAC and 50VDC.
-10°C to +60°C.
1000A at 125/250VAC, 400A at 125/250VAC, 300A at 50VDC.
60 seconds.
Push-to-reset.
Panel mount.
UR, cURus, CCC, TUV, VDE, and marine ignition protection to SAE J1171 and UL1500.
