| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| SVHC Present | |
| Voltage Rating |

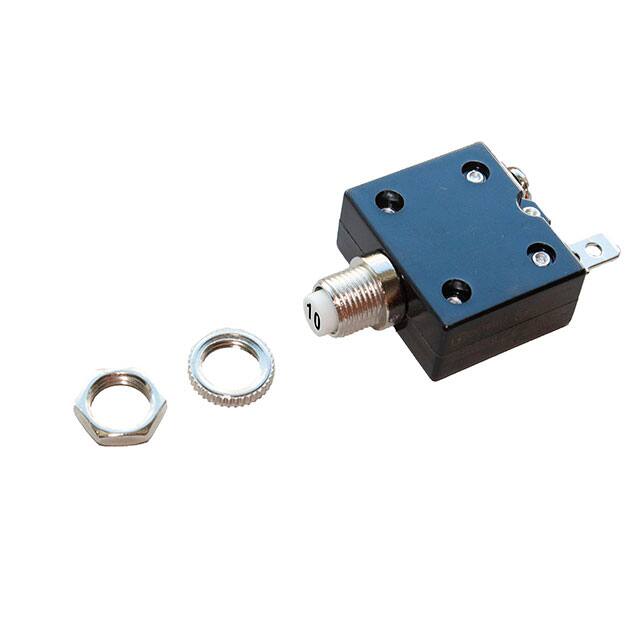

The OptiFuse CBW58-HL4-10A-5C is a thermal circuit breaker designed for reliable circuit protection. It offers a 10A current rating and can handle up to 250VAC or 50VDC.
This circuit breaker features a push-to-reset actuator and a single pole configuration. It is designed for panel mount applications, ensuring secure installation in various systems. The thermal breaker type provides overcurrent protection suitable for a range of industrial and commercial uses.
Key specifications include an operating ambient temperature range of -10℃ to +60℃, an interrupting rating of 1000A at 125/250VAC, and 300A at 50VDC. It also meets marine ignition protection standards SAE J1171 and UL1500.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The OptiFuse CBW58-HL4-10A-5C is a robust solution for applications requiring dependable overcurrent protection.
10A
250VAC and 50VDC
Panel Mount
-10°C to +60°C
Yes, it uses a Push to Reset actuator
1000A at 125/250VAC and 300A at 50VDC
Yes, it is Marine Ignition Protected per SAE J1171 and UL1500
