| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

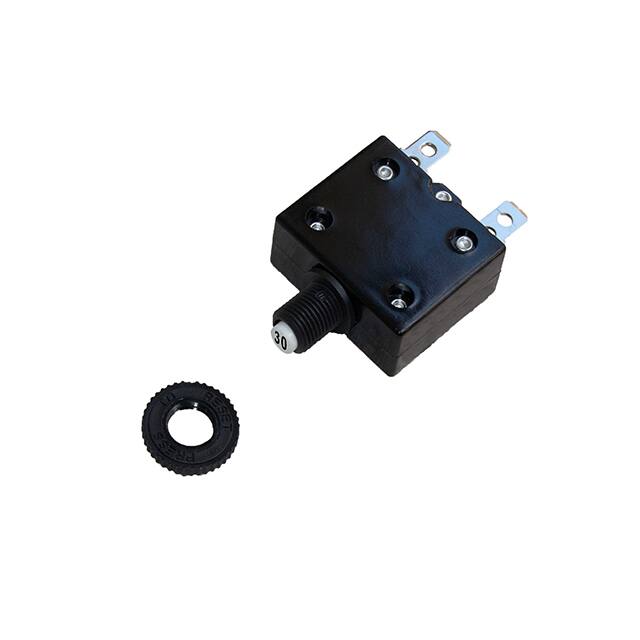

The OptiFuse CBW58-ES-30A-5P is a thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 30A and can handle voltages up to 250VAC and 50VDC.
Key specifications include a frequency range of 50-60 Hz, a dielectric strength of 1500 VAC, and various interrupting ratings depending on voltage. The breaker is equipped with a push-to-reset actuator and a standard profile.
This circuit breaker is suitable for panel mounting and features a black body with tin-plated terminals. It operates within an ambient temperature range of -10℃ to +60℃. Agency approvals include CCC, CSA, cURus, TUV, and UR.
Time-current characteristics are defined for different current percentages, ensuring appropriate trip responses. The unit also meets marine ignition protection standards (SAE J1171 and UL1500).
The current rating is 30A.
The maximum AC voltage rating is 250 VAC.
The maximum DC voltage rating is 50 VDC.
It is a thermal circuit breaker.
It features a push-to-reset actuator.
The operating ambient temperature range is -10℃ to +60℃.
Yes, it is protected to SAE J1171 and UL1500.
