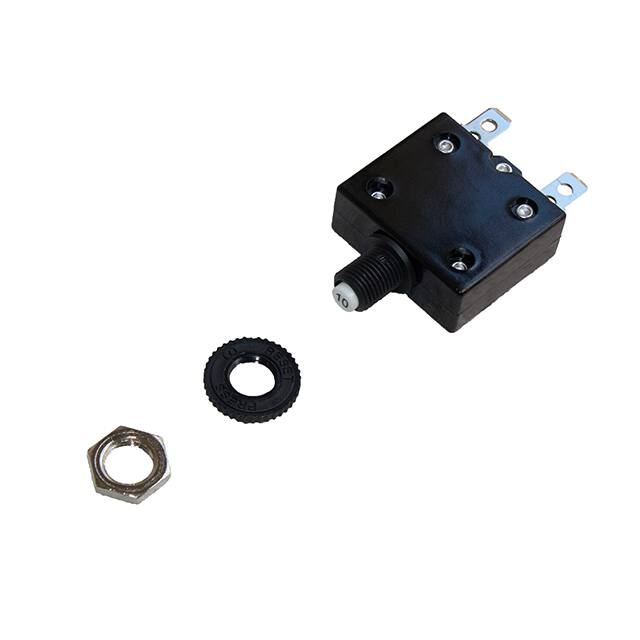

The OptiFuse CBW58-ES-25A-5C is a thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 25A and a voltage rating of 250V AC.
This circuit breaker features a convenient push-to-reset actuator, allowing for easy manual reset after a trip. Its panel mount design facilitates straightforward integration into various electrical enclosures and systems.
Key specifications include a frequency range of 50-60 Hz, a dielectric strength of 1500 VAC, and an insulation resistance greater than 100MΩ. The operating ambient temperature range is -10℃ to +60℃.
Agency approvals include CCC, CSA, cURus, TUV, and UR, indicating compliance with various industry standards. The breaker is also marine ignition protected to SAE J1171 and UL1500.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 25A.
The voltage rating is 250V AC.
It features a push-to-reset actuator.
The operating ambient temperature is -10℃ to +60℃.
Yes, it is marine ignition protected to SAE J1171 and UL1500.
