| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

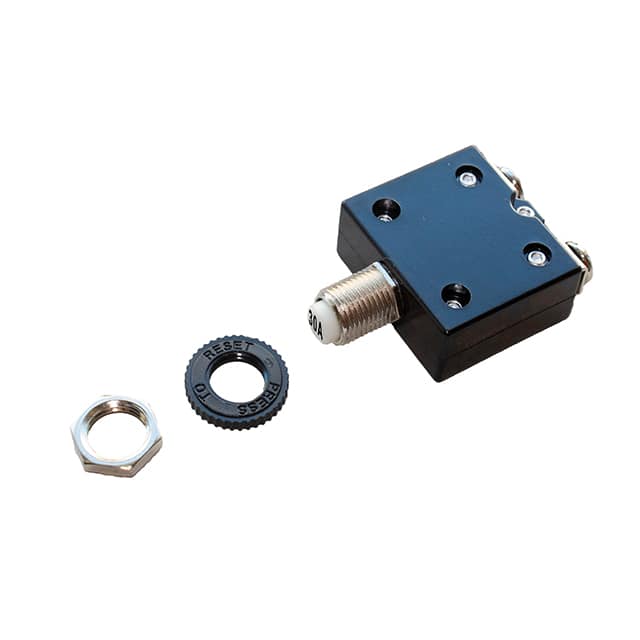

The OptiFuse CBW58-BL-30A-5X is a thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 30A and a voltage rating of 250VAC, with a DC voltage rating of 50VDC.
Key specifications include a push-to-reset actuator for easy operation and a panel mount design for secure installation. The breaker operates within a temperature range of -10℃ to +60℃ and has an insulation resistance greater than 100MΩ at 500VDC. It meets various agency standards including CCC, CSA, cURus, TUV, and UR.
This circuit breaker is suitable for applications requiring thermal protection with a manual reset function. Its robust construction and compliance with multiple safety standards make it a dependable choice for protecting electrical circuits from overcurrent conditions.
It is rated for 250VAC and 50VDC.
Panel mount.
-10°C to +60°C.
1000A at 125/250VAC for 3-50A, 400A at 125/250VAC for 3-30A, 300A at 50VDC for 3-50A.
1500VAC for 1 minute.
60 seconds.
CCC, CSA, cURus, TUV, UR.
