| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| SVHC Present | |
| Voltage Rating |

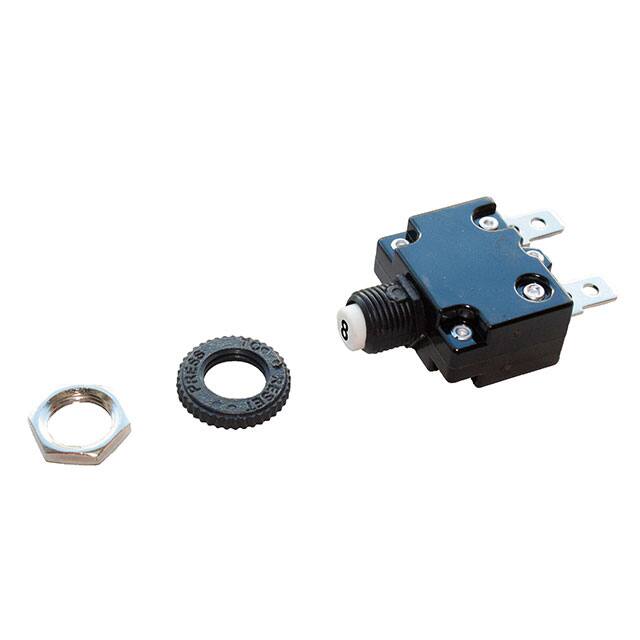

The OptiFuse CBW57-PS-8A-5X is a thermal circuit breaker designed for overcurrent protection. It offers an amperage range of 3A to 30A and a voltage rating of 125/250 VAC and 32/50 VDC.
Key electrical specifications include an interrupt rating of 1000A at 125/250 VAC and 400A at 125 VAC. The breaker features a push-to-reset actuator and a reset time within 60 seconds. It operates within an ambient temperature range of -10℃ to +60℃.
This circuit breaker is suitable for panel mounting and has a black body with tin-plated terminals. It is compliant with various agency standards including UR, CCC, TUV, and VDE.
Warnings indicate that operation beyond specified maximum ratings may cause damage. The device is intended for occasional overcurrent protection and contact with chemical solvents should be avoided.
The current rating is 8A.
The voltage rating is 250 VAC.
It is a thermal circuit breaker.
It features a push-to-reset actuator.
The operating ambient temperature is -10℃ to +60℃.
It is approved by UR, CCC, TUV, and VDE.
