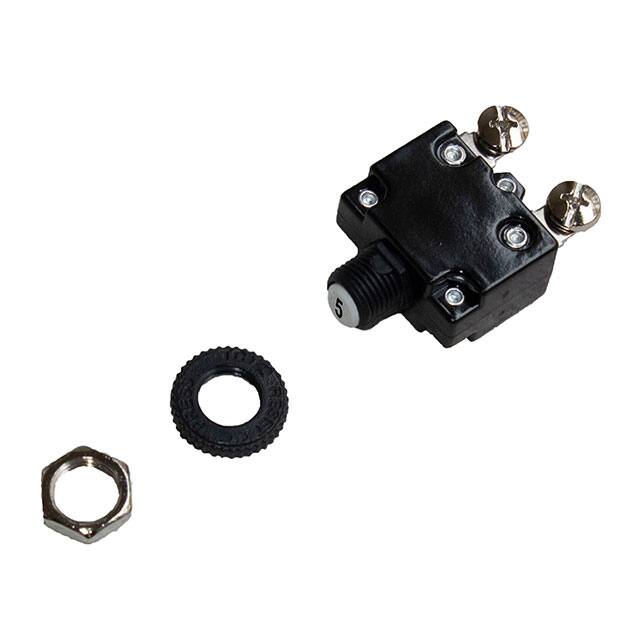

The OptiFuse CBW57-PF-5A-5X is a thermal circuit breaker with a 5A current rating and a 250VAC / 32VDC voltage rating. It is designed for panel mounting and features a convenient push-to-reset actuator. This breaker operates within a frequency range of 50-60 Hz and offers a dielectric strength greater than 1500 VAC.
Key electrical specifications include an interrupt rating of 1000A at 125/250 VAC and 400A at 125 VAC. The insulation resistance is rated above 100MΩ (at 500 VDC), and it has a contact endurance of 500 cycles at 125 VAC with 150% of rated current. The operating ambient temperature range is from -10°C to +60°C.
This circuit breaker is listed by several agencies, including UR, CCC, TUV, and VDE, ensuring compliance with various industry standards. It is suitable for applications requiring reliable overcurrent protection where a thermal tripping mechanism is preferred. The device is intended for occasional overcurrent protection and not for repeated overcurrent conditions.
The current rating is 5A.
The voltage rating is 250 VAC.
It is a thermal circuit breaker.
It is designed for panel mounting.
The operating ambient temperature is -10°C to +60°C.
It features a push-to-reset actuator.
