| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

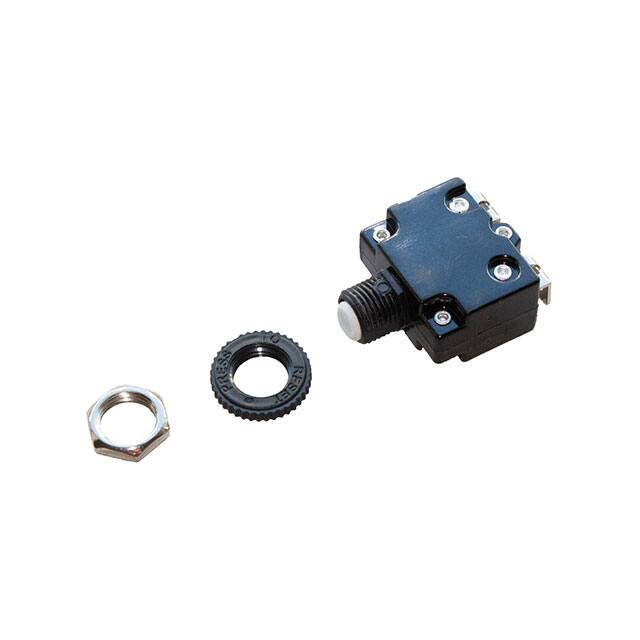

The OptiFuse CBW57-PB-30A-WX is a low-profile thermal circuit breaker designed for overcurrent protection. It offers a current rating of 30A and can handle input voltages of up to 250 VAC or 50 VDC, operating at frequencies of 50-60 Hz.
This circuit breaker features a push-to-reset actuator and a panel mount design for easy integration into systems. It has an interrupt rating of 1000A at 125/250 VAC and 300A at 50 VDC. The operating ambient temperature range is -10°C to +60°C.
Agency standards and listings include UR, CCC, TUV, and VDE, indicating its suitability for various applications. The device is also CSA Marine Ignition Protected to SAE J1171 and UL1500.
Key specifications include a dielectric strength greater than 1500 VAC, insulation resistance over 100MΩ (500 VDC), and contact endurance of 500 cycles at 150% of rated current. The reset time is within 60 seconds.
The current rating is 30A.
The maximum AC voltage rating is 250 VAC.
The maximum DC voltage rating is 50 VDC.
It has a push-to-reset actuator.
The operating ambient temperature range is -10°C to +60°C.
Yes, it is CSA Marine Ignition Protected to SAE J1171 and UL1500.
