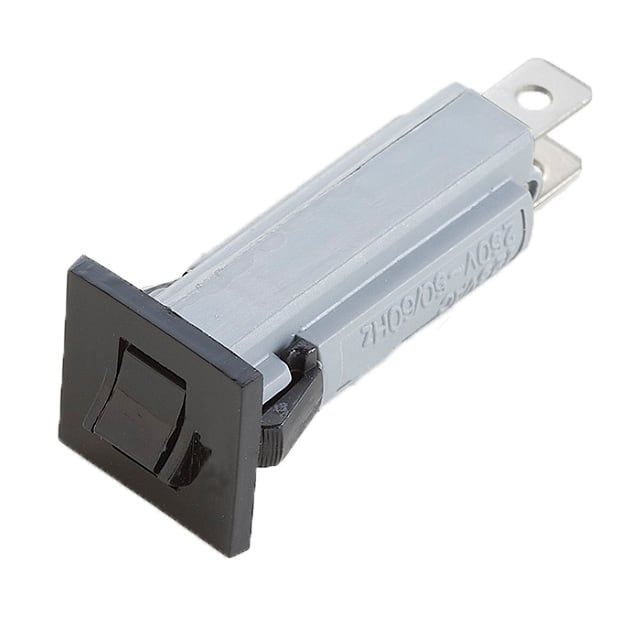

CBW28-6A The OptiFuse CBW28-6A is a thermal circuit breaker with a 6A current rating and 250V voltage rating. It features a push-to-reset actuator and snap-in front panel mounting.
Mfr Part #:

CBW28-6A

Mfr Name: OptiFuse
OptiFuse
The OptiFuse CBW28-6A is a thermal circuit breaker with a 6A current rating and 250V voltage rating. It features a push-to-reset actuator and snap-in front panel mounting.
Stock on Request

CBW28-6A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Insulation Resistance
Mounting Type
Number of Poles
Panel Thickness
Voltage Rating
View Similar Products (0)

CBW28-6A Description

Short technical summary and product information.

The OptiFuse CBW28-6A is a thermal circuit breaker designed for overcurrent protection. It has a current rating of 6A and a voltage rating of 250 VAC, with an interrupt capacity of 1000A at 250 VAC.



This circuit breaker features a push-to-reset actuator and a single pole configuration. It is designed for snap-in front panel mounting and has a panel thickness range of 0.8 to 2.1mm. The terminals are 0.250-inch quick connect type, made of nickel-plated brass.



The CBW28-6A is suitable for applications requiring reliable overcurrent protection. It is intended for occasional overcurrent protection and not for repeated overcurrent conditions. Avoid contact with chemical solvents to maintain device performance.

CBW28-6A Quick Information

Product Type: Circuit Breaker
Canonical Name: OptiFuse CBW28 Thermal Circuit Breaker, 6A, 250V
Subcategory: Fuseholder Type

CBW28-6A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CBW28-6A Features

  • 6A current rating for overcurrent protection.
  • 250V AC / 32V DC voltage rating.
  • Push-to-reset actuator for easy operation.
  • Snap-in front panel mount design.
  • 1000A interrupt capacity at 250V AC.

CBW28-6A Applications

  • Provides reliable overcurrent protection.
  • Suitable for front panel installations.
  • Used in systems requiring manual reset.
  • Designed for occasional fault conditions.

CBW28-6A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the CBW28-6A?

6A.

What voltage ratings does the CBW28-6A support?

250VAC and 32VDC.

What is the interrupt capacity of this circuit breaker?

1000A at 250VAC and 200A at 32VDC.

What is the mounting type for the CBW28-6A?

Snap-in front panel mount for panel thickness 0.8-2.1mm.

How many poles does this circuit breaker have?

1 pole.

What type of actuator does it use?

Push-to-reset actuator.

What is the insulation resistance of the CBW28-6A?

100MΩ.
