| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | 1 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Interrupt Capacity (AC) | |
| Interrupt Capacity (DC) | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Package / Case | |
| Panel Thickness | |
| Terminal Type | |
| Termination Style | |
| Trip Threshold (May Trip) | |
| Trip Threshold (Must Trip) | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC |

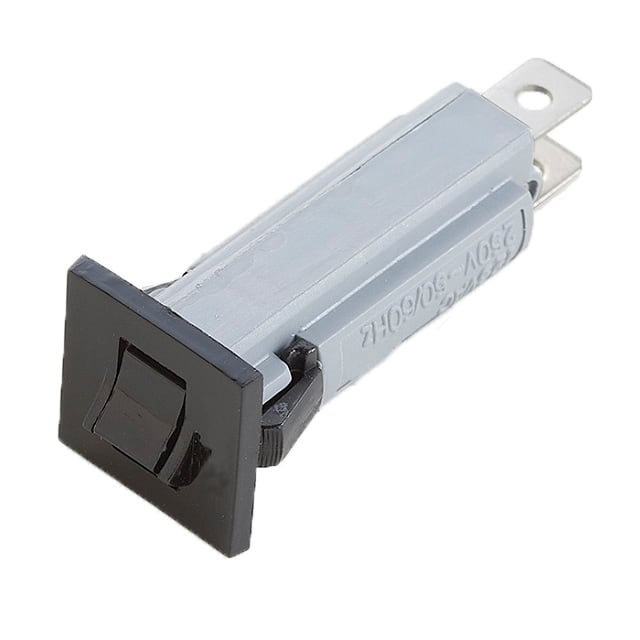

The OptiFuse CBW28-3A is a thermal circuit breaker of the fuseholder type, designed for overcurrent protection in various applications. This single-pole device features a push-to-reset actuator and is rated for a continuous current of 3A. It is capable of interrupting 1000A at 250 VAC and 200A at 32 VDC. The breaker operates with a thermal trip mechanism, with a may-trip threshold between 101% and 134% of rated current, and must trip at 135% within one hour. The CBW28-3A is mounted via snap-in front panel mounting, accepting panel thicknesses from 0.8 to 2.1 mm. Electrical connections are made using 0.250-inch quick connect terminals made of nickel-plated brass. The device is CSA and cULus approved.
3A.
125/250 VAC and 32 VDC.
1000A at 250 VAC and 200A at 32 VDC.
May trip between 101% and 134% of rated current; must trip at 135% within one hour.
Push to reset.
1 pole.
Yes, CSA and cULus approved.
