| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Panel Thickness | |
| Termination Style | |
| Voltage Rating |

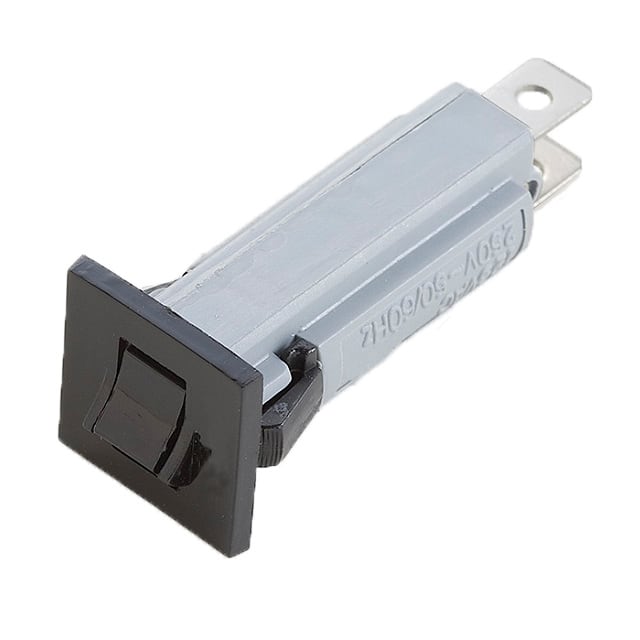

The OptiFuse CBW28-2A is a single-pole, thermal circuit breaker designed for overcurrent protection. It offers a current rating of 2A and a voltage rating of 250V.
This circuit breaker features a convenient push-to-reset actuator for easy operation. Its design includes a snap-in front panel mount, making installation straightforward in panels with a thickness range of 0.8 to 2.1mm.
The CBW28-2A provides a breaking capacity of 1000A at 250 VAC and 200A at 32 VDC. It also has an insulation resistance of 100MΩ and utilizes 0.250” quick connect terminals made of nickel-plated brass.
Agency standards and listings include CSA and cULus. The device is intended for occasional overcurrent protection and should avoid contact with chemical solvents to maintain performance.
The current rating is 2A.
The voltage rating is 250V.
It is a thermal circuit breaker.
It features a push-to-reset actuator.
The interrupt capacity is 1000A at 250 VAC.
The minimum insulation resistance is 100MΩ.
It uses 0.250” [6.35mm] quick connect terminals made of nickel-plated brass.
