| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Panel Thickness | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

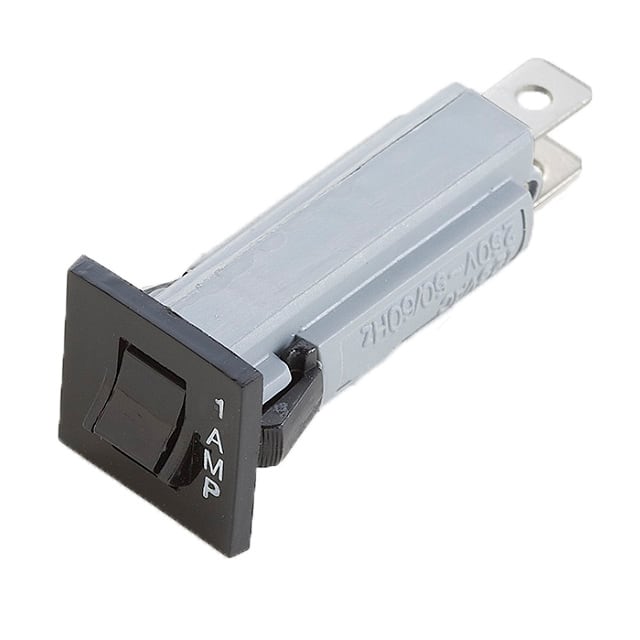

The OptiFuse CBW28-1A is a thermal circuit breaker with a 1A current rating and a 250V AC / 32V DC voltage rating. It is designed for push-to-reset operation and offers a breaking capacity of 1000A at 250 VAC and 200A at 32 VDC. The circuit breaker has a panel thickness compatibility of 0.8 – 2.1mm and utilizes 0.250” quick connect terminals.
This device is intended for occasional overcurrent protection and is approved by CSA and cULus. It features a snap-in front panel mount for easy installation. The thermal tripping characteristics vary based on current rating, with specific trip ranges defined for 1A-2.5A and 3.0A-16A ranges. Ambient temperature can affect performance, requiring derating factors for accurate operation.
Warning: Operation beyond specified maximum ratings or improper use may result in damage, electrical arcing, or flame. Avoid contact with chemical solvents, as prolonged contact can degrade device performance.
1A.
250VAC and 32VDC.
1000A at 250VAC and 200A at 32VDC.
For 1A-2.5A ratings, may trip between 101% to 149% of rated current and must trip at 150% within 1 hour.
Push-to-reset.
Single pole (1 pole).
CSA and cULus.
