| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| Crosstalk | |
| Current Consumption (Operational) | |
| DisplayPort Speed | |
| Factory Pack Quantity | |
| Features | |
| HDMI Speed | |
| Insertion Loss (@ 1.35 GHz) | |
| Insertion Loss (@ 100 MHz) | |
| Insertion Loss (@ 2.7 GHz) | |
| Intra-Pair Skew | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| Off-State Isolation | |
| On | |
| Operating Temperature | |
| PCI Express Speed | |
| Return Loss | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The NXP Semiconductors CBTL06GP213EEJ is a high-performance, six-channel multiplexer switch IC designed for applications requiring flexible signal routing for DisplayPort, HDMI, and PCI Express.
This device supports Generation 2 (Gen2) speeds, offering data rates up to 5.0 Gbit/s for PCI Express, 5.4 Gbit/s for DisplayPort v1.2, and 6 Gbit/s for HDMI 2.0. It features four high-speed differential channels capable of 1:2 switching or 2:1 multiplexing, along with dedicated channels for Hot Plug Detect (HPD), AUX, and DDC signals. The AUX/DDC channels include a four-position multiplexer for additional routing flexibility.
Designed with high-bandwidth pass-gate technology, the CBTL06GP213EEJ ensures signal integrity with low insertion loss and crosstalk. It operates over a wide common-mode range and supports a voltage range of 3V to 3.6V, consuming a typical operational current of 490 µA. A shutdown function is included for power-saving in battery-powered applications.

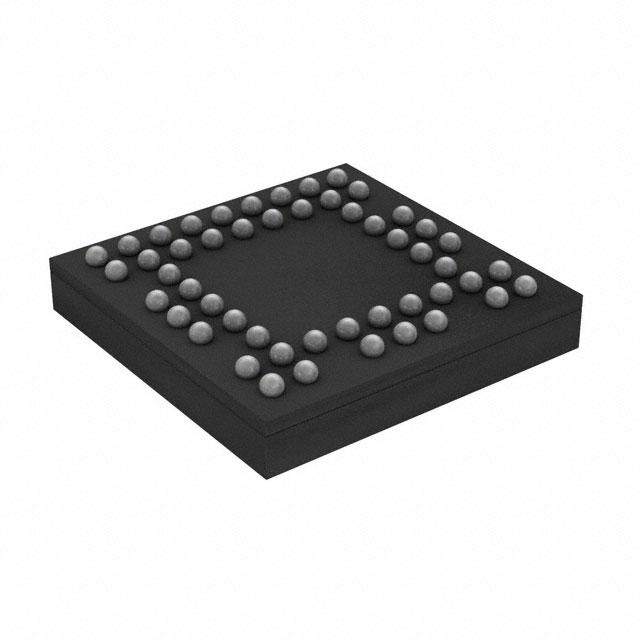

The CBTL06GP213EEJ is supplied in a compact 50-TFBGA (5x5 mm) package, suitable for surface mounting. Its typical applications include selecting between multiple GPU display sources or routing a single source to multiple display sinks.
The operating voltage range is 3V to 3.6V.
The operating temperature range is -40°C to 105°C.
It is available in a 50-TFBGA package.
The bandwidth is 9.5 GHz.
The nominal on-resistance is 10 Ohms.
It has 6 channels.
The typical current consumption is 490 µA.
