| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Carton Quantity | |
| Coil Resistance | |
| Current | |
| Current Consumption | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage Range | |
| Packaging Type | |
| Port Location | |
| Rated Voltage | |
| Reel Size | |
| Sound Pressure Level | |
| Sound Pressure Level (SPL) | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Weight |

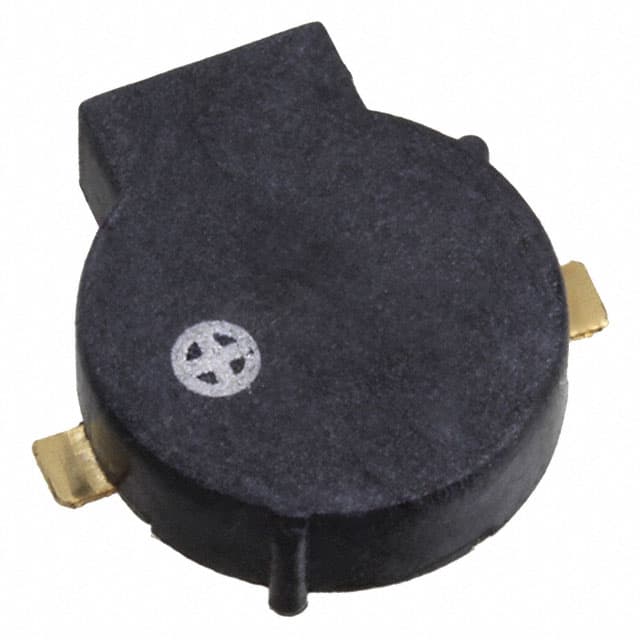

The CBT-09427-SMT-TR is a magnetic buzzer transducer from Same Sky (formerly CUI Devices). It is designed for surface mount assembly with a side sound port, operating as a single tone, externally driven transducer. The buzzer is rated at 3.6V zero-peak signal with an operating voltage range of 2.5 to 4.5V. At rated voltage and 2.73kHz square wave with 50% duty cycle, it produces a sound pressure level of 83 to 87 dBA at 10cm, with typical current consumption of 110mA. The coil resistance ranges from 13 to 19 ohms. The device is housed in a 9.0mm diameter, 2.5mm height package, weighing 0.37g, made of LCP (Liquid Crystal Polymer) with gold-plated solder pad termination. It operates over -40°C to 85°C and stores at the same range. It is RoHS compliant and packaged in tape and reel with 800 units per reel.
The rated voltage is 3.6V zero-peak signal.
The rated frequency is 2.73 kHz.
The sound pressure level is 83 to 87 dBA at 10cm under rated conditions.
It is an externally driven transducer, requiring a zero-peak signal input.
Surface mount with solder pads and gold plating.
-40°C to 85°C.
800 units per tape and reel.
