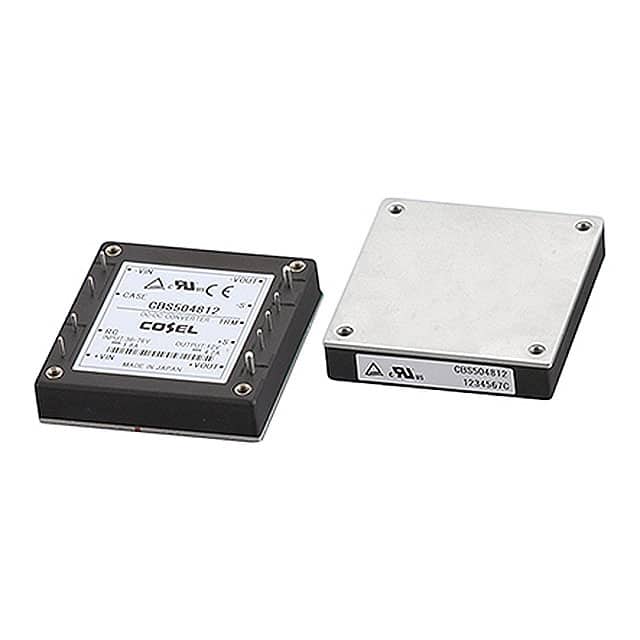

CBS504812 Isolated DC-DC converter from Cosel. Input 36-76V DC, output 12V at 4.2A (50.4W). Half brick through-hole package with remote on/off and remote sense.
Mfr Part #:

CBS504812

Available from 1 distributors
Mfr Name: Cosel
Cosel
Isolated DC-DC converter from Cosel. Input 36-76V DC, output 12V at 4.2A (50.4W). Half brick through-hole package with remote on/off and remote sense.
✓ Total Stock: 8 pcs

CBS504812 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CBS504812 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Power
Output Voltage
SVHC Present
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

CBS504812 Description

Short technical summary and product information.

The Cosel CBS504812 is a 50W isolated DC-DC converter from the CBS series, designed for telecommunications and industrial applications. It accepts a wide input voltage range of 36-76V DC and provides a regulated 12V output at up to 4.2A.



Key electrical characteristics include a typical efficiency of 88% at nominal input and full load, line regulation of 24mV max, load regulation of 24mV max, and ripple and noise of 150mVp-p max over the -20 to +100°C temperature range. The converter also features overcurrent protection (105% of rating, auto recovery), overvoltage protection (13.80-16.80V), and remote on/off with negative logic.



The CBS504812 is packaged in a half brick (61.0mm x 57.9mm x 12.7mm) with through-hole mounting and M3 tapped mounting holes. Operating temperature range is -40°C to +100°C with derating. Safety agency approvals include UL60950-1, C-UL, and TUV.

CBS504812 Quick Information

Product Type: DC-DC Converter
Series: CBS
Canonical Name: CBS504812: 50W Isolated DC-DC Converter, 36-76V Input to 12V Output
Subcategory: Bus Converter

CBS504812 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CBS504812 Features

  • Wide 36-76V DC input range.
  • Regulated 12V output at 4.2A.
  • 88% typical full-load efficiency.
  • Built-in overcurrent and overvoltage protection.
  • Half brick through-hole package.

CBS504812 Applications

  • Telecommunications power distribution systems.
  • Industrial control equipment power supplies.
  • Networking and datacom equipment.
  • Board-mount distributed power architectures.

CBS504812 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the CBS504812?

36-76V DC nominal 48V.

What output voltage and current does the CBS504812 provide?

12V at 4.2A, 50.4W maximum.

What is the efficiency of this converter?

Typical efficiency is 88% at nominal input and full load.

What is the package type of the CBS504812?

Half brick (61.0mm x 57.9mm x 12.7mm) through-hole.

What is the operating temperature range?

-40°C to +100°C with derating.

Does this converter have protection features?

Yes, overcurrent protection at 105% of rating with auto recovery and overvoltage protection at 13.80-16.80V.

Is the CBS504812 RoHS compliant?

Yes, marked as RoHS3 Compliant (unverified).
