| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage - Nominal | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

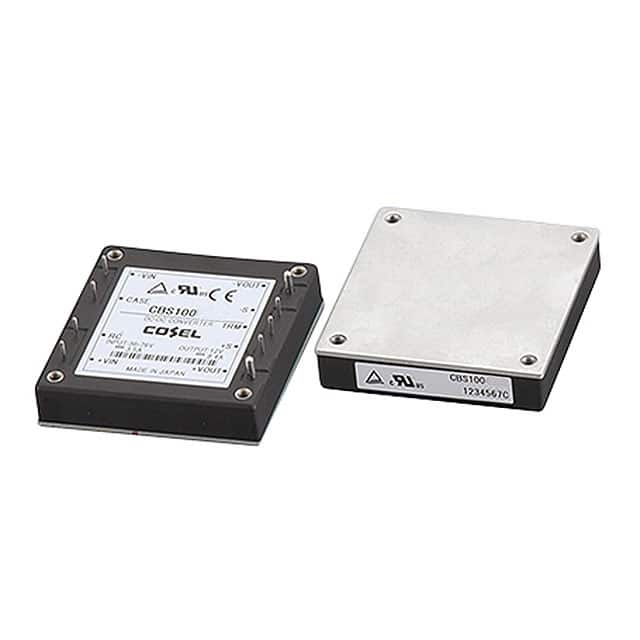

The Cosel CBS1004824 is a high-efficiency isolated DC-DC converter from the CBS100 series, designed for board-mount applications requiring a regulated 24V output. It accepts a wide input voltage range of 36V to 76V, making it suitable for 48V telecom and industrial bus systems.
With a rated output power of 100W at 4.2A, this converter achieves up to 88% efficiency. It features built-in protection circuits including overcurrent protection (OCP), overvoltage protection (OVP), and overtemperature protection (OTP), along with remote on/off control. The operating temperature range spans from -40°C to 100°C with derating.
The module is housed in a 9-DIP through-hole package with dimensions of 61.0mm x 57.9mm x 12.7mm, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $134.54 | $134.54 |
| 5+ | $133.47 | $133.47 |
| 10+ | $132.40 | $132.40 |
| 25+ | $123.86 | $123.86 |
| 50+ | $119.59 | $119.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24V with a maximum output current of 4.2A.
The input voltage range is 36V to 76V.
The operating temperature range is -40°C to 100°C with derating.
It includes overcurrent protection (OCP), overvoltage protection (OVP), and overtemperature protection (OTP).
It uses a through-hole 9-DIP module package.
