| Category | |
| Manufacturer Name | |
| Efficiency | |
| Input Voltage | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) |

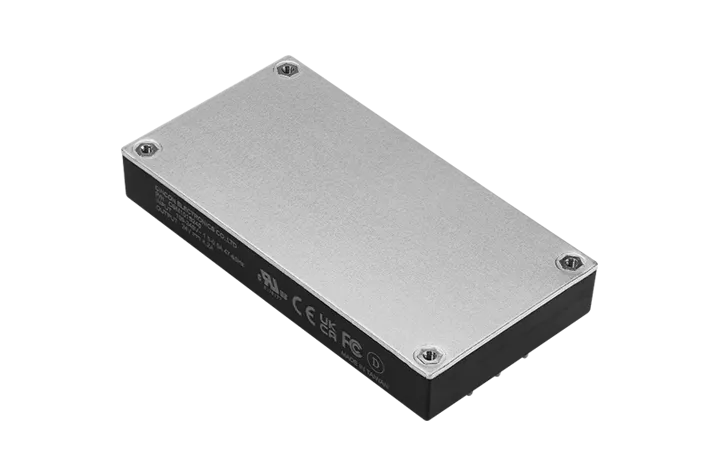

The Cincon CBM101S240 is a 100.8 Watt AC-DC power supply designed in an all-in-one brick format. It offers a universal input voltage range from 90 to 264Vac, making it suitable for global applications. This power supply boasts high efficiency, reaching up to 94.5%, and operates with low no-load input power consumption.
Key electrical specifications include a 24V output voltage and 4.2A output current. The operating temperature range is wide, from -40°C to 85°C, and it can operate at altitudes up to 5000 meters. The unit is built with continuous short circuit protection, over voltage protection, and over temperature protection for enhanced reliability.
Designed for ease of integration, the CBM101S240 features a 17mm ultra-low profile package and does not require a heatsink for full load operation, eliminating the need for a fan. It includes built-in EMI filters, bulk capacitors, and output capacitors. Approvals include IEC/EN/UL 62368-1 and EN55032/CISPR/FCC Class B compliance.
The input voltage range is 90-264Vac.
The output voltage is 24V and the output current is 4.2A.
The nominal power rating is 100.8W.
The maximum efficiency is 94.5%.
The operating temperature range is -40°C to 85°C.
The package type is Brick.
The maximum operating altitude is 5000m.
