| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

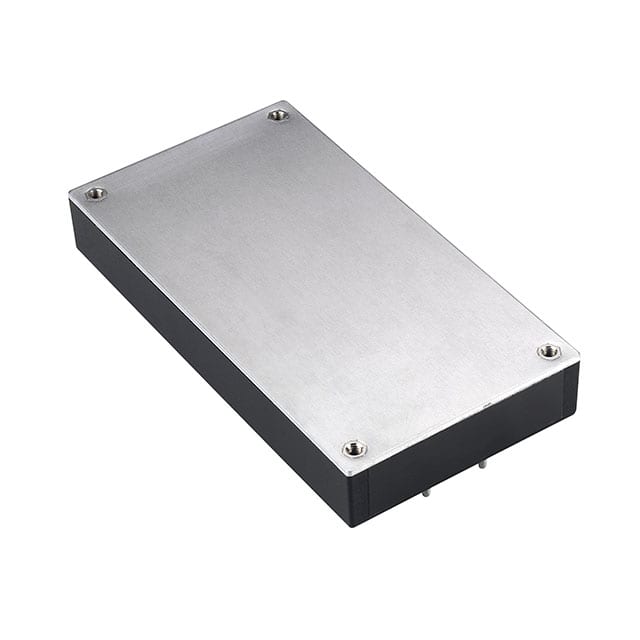

This Cincon Electronics Co. LTD CBM100S240 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 101W power output with a 4.2A current rating.
The converter operates with a wide input voltage range of 90 to 264 VAC and boasts an efficiency of 91%. Key features include a baseplate for heat dissipation, Power Factor Correction (PFC), and a universal input.
With a compact module package and through-hole mounting, this component is suitable for various board-level designs. It operates within a temperature range of -20°C to 85°C with derating and meets standard number 60950-1.
Approvals include CE, cURus, FCC, and TUV, ensuring compliance for commercial applications.
The CBM100S240 provides a single output of 24V at 4.2A.
The input voltage range is 90 to 264 VAC.
The efficiency is 91%.
The operating temperature range is -20°C to 85°C with derating.
The module measures 116.8mm (length) x 61.0mm (width) x 17.0mm (height).
It is approved to standard 60950-1 and carries CE, cURus, FCC, and TUV agency approvals.
The mounting type is through hole.
