| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | 6 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

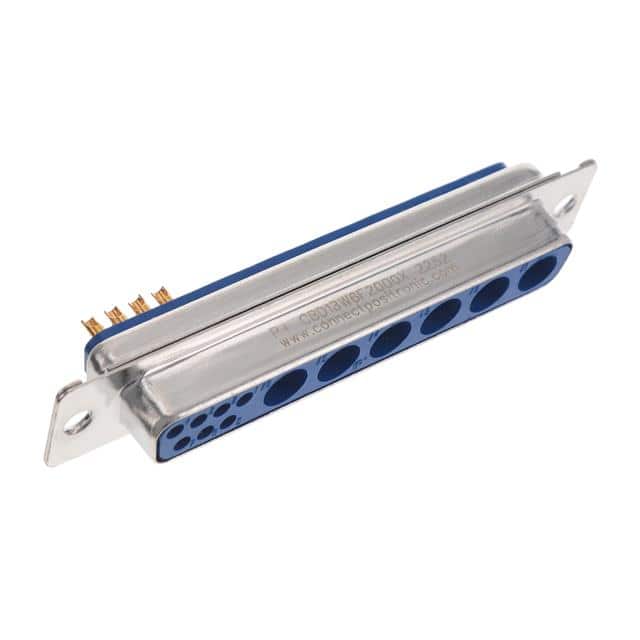

The Positronic CBD13W6F2000X is a D-Sub Combo receptacle designed for applications requiring a mix of signal and power or coax connections within a single connector. It features a 13-position layout with 7 signal contacts and 6 positions for coax or power contacts (contacts not included). The connector uses a shell size 4 (DC, C) - 13W6 layout and is constructed with a steel, tin-plated shell for durability and EMI shielding. Termination is via solder cup, making it suitable for hand wiring or field installation. The mounting type is free hanging (in-line) with an unthreaded housing/shell flange. Electrical rating is 7.5 A per contact, and the connector is rated IP65/IP67 for dust-tight and water-resistant/proof operation. The insulator material has a UL94 V-0 flammability rating, and contacts are finished with gold flash. This connector is ideal for industrial, telecom, and harsh environment applications where a robust, hybrid connection is required.
13 positions (7 signal + 6 coax or power).
7.5 A per contact.
Free hanging (in-line).
IP65/IP67 - dust tight, water resistant, waterproof.
Solder cup.
Steel, tin plated.
No, contacts are not included (signal and coax or power not included).
