| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Rated Current | |
| Saturation Current | |
| Shielding | |
| Standard Package Quantity | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Characteristic | |
| Temperature Rise Current | |
| Tolerance | |
| Type | |
| Width | |
| terminal-spacing |

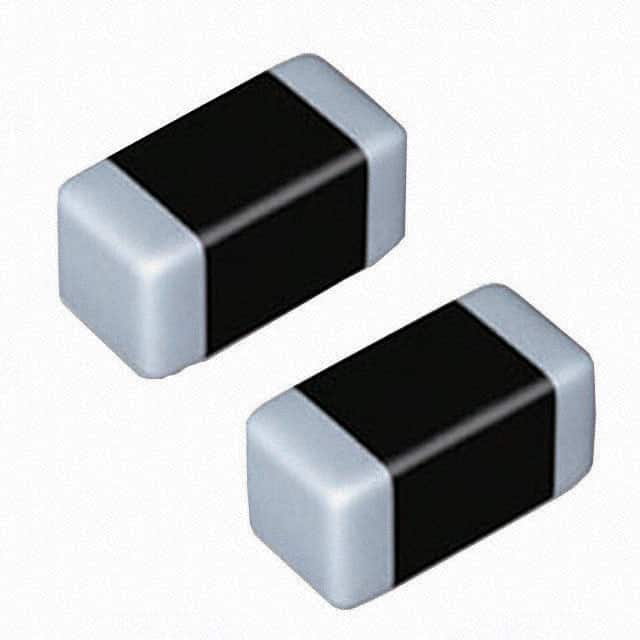

The Taiyo Yuden CBC2012T4R7M is a wirewound ferrite core fixed inductor in a compact 0805 surface mount package. It offers an inductance of 4.7 µH with ±20% tolerance, measured at 7.96 MHz. The component is rated for a maximum DC resistance of 0.65 Ω (typical 0.5 Ω) and can handle a saturation current of 0.36 A and a temperature rise current of 0.52 A. The self-resonant frequency is a minimum of 45 MHz, making it suitable for power supply filtering and DC-DC converter applications.
This unshielded inductor operates over a temperature range of -40°C to +105°C, with an inductance change of ±35% over temperature. The package dimensions are 2.0 mm x 1.25 mm x 1.25 mm, with a terminal spacing of 0.5 mm. It is supplied in tape and reel packaging with 3000 pieces per reel.
The CBC2012T4R7M is RoHS3 compliant, REACH unaffected, and halogen free, meeting current environmental standards. It is designed for general purpose use in consumer electronics, telecommunications, and industrial equipment where a reliable, low-profile inductor is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.12 | $0.12 |
| 100+ | $0.10 | $0.10 |
| 1,000+ | $0.08 | $0.08 |
| 3,000+ | $0.08 | $0.08 |
| 6,000+ | $0.07 | $0.07 |
| 9,000+ | $0.07 | $0.07 |
| 15,000+ | $0.07 | $0.07 |
| 21,000+ | $0.06 | $0.06 |
| 30,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH, measured at 7.96 MHz, with a tolerance of ±20%.
The rated current is 0.36 A maximum. The saturation current is also 0.36 A (30% inductance drop), and the temperature rise current is 0.52 A (40°C rise).
The typical DC resistance is 0.5 Ω, with a maximum of 0.65 Ω.
The self-resonant frequency is a minimum of 45 MHz.
The inductor is in an 0805 (2012 metric) surface mount package, with dimensions 2.0 mm x 1.25 mm x 1.25 mm.
The operating temperature range is -40°C to +105°C, including self-generated heat.
Yes, it is RoHS3 compliant, REACH unaffected, and halogen free as per the datasheet.
