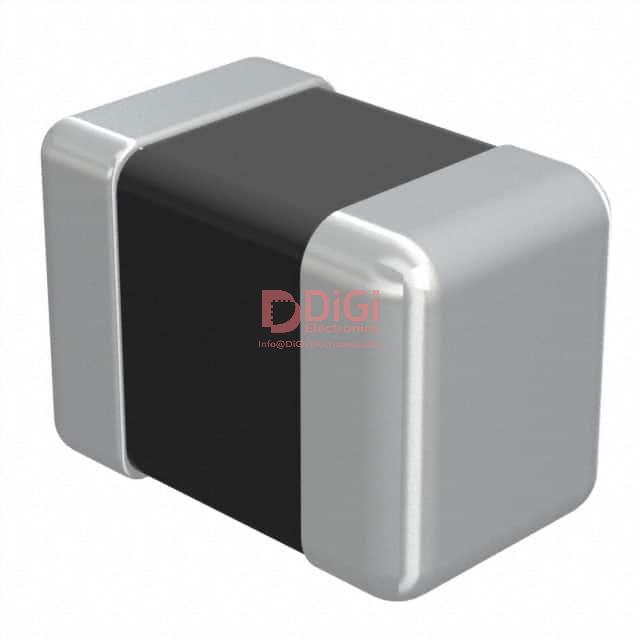

CBC2012T100M The Taiyo Yuden CBC2012T100M is a fixed inductor with a 10µH inductance value and a 340mA current rating. It is designed for SMD mounting.
Mfr Part #:

CBC2012T100M

Available from 1 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The Taiyo Yuden CBC2012T100M is a fixed inductor with a 10µH inductance value and a 340mA current rating. It is designed for SMD mounting.
✓ Total Stock: 415 pcs
$ Price Range: $0.20

CBC2012T100M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
415 pcs
On Request
415 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CBC2012T100M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Saturation
DC Resistance
Inductance
Lead Style
Mounting Type
Operating Temperature
Self Resonant Frequency
Tolerance
View Similar Products (0)

CBC2012T100M Description

Short technical summary and product information.

The Taiyo Yuden CBC2012T100M is a fixed inductor belonging to the CB, C series. It features a drum core, wirewound construction with a ferrite core material. This unshielded inductor offers an inductance of 10 µH with a tolerance of ±20% and a current rating of 340 mA. The maximum DC resistance is 1.56 Ohms, and it has a saturation current of 240mA.



Designed for surface mount (SMD) applications, the CBC2012T100M comes in an 0805 (2012 Metric) package size and is supplied on tape and reel. It operates within a temperature range of -40°C to 105°C and has a self-resonant frequency of 40MHz. This component is suitable for various electronic circuits requiring stable inductance characteristics.

CBC2012T100M Quick Information

Product Type: Fixed Inductor
Series: CB, C
Canonical Name: Taiyo Yuden CBC2012T100M Fixed Inductor
Subcategory: Fixed Inductors

CBC2012T100M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CBC2012T100M Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

CBC2012T100M Features

  • 10µH inductance with ±20% tolerance.
  • 340mA current rating and 240mA saturation current.
  • 1.56 Ohm maximum DC resistance.
  • Unshielded wirewound ferrite drum core.
  • SMD mounting in 0805 package.

CBC2012T100M Applications

  • Suitable for general purpose filtering.
  • Used in power supply circuits.
  • Applicable for signal conditioning.
  • Ideal for compact electronic designs.

CBC2012T100M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of CBC2012T100M?

10 µH at 2.52 MHz.

What is the current rating?

340 mA.

What is the DC resistance?

1.56 Ohm maximum.

What is the self-resonant frequency?

40 MHz.

What is the package size?

0805 (2012 Metric) SMD.

What is the inductance tolerance?

±20%.

What is the operating temperature range?

-40°C to 105°C.
