| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,996 pcs
|
1996 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

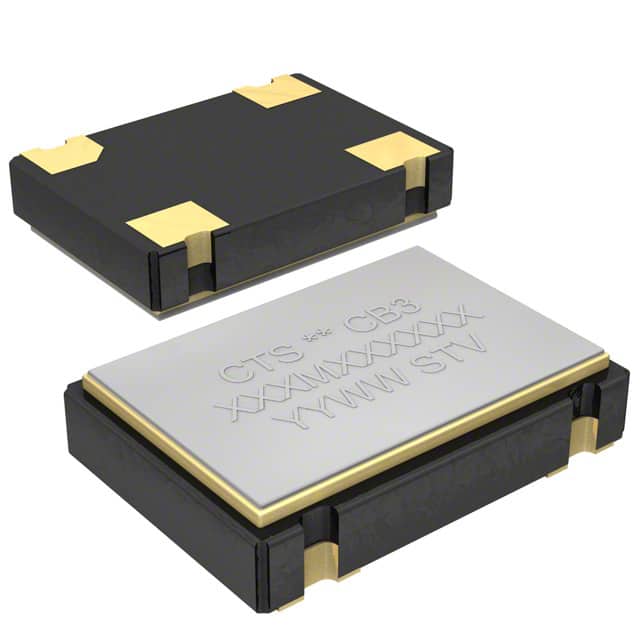

This is a 25 MHz standard crystal oscillator (XO) from CTS-Frequency Controls, part of the CB3LV series. It provides both HCMOS and TTL compatible outputs, making it suitable for interfacing with various logic families.
Operates at 3.3V nominal supply voltage with a typical current consumption of 40mA. Frequency stability is ±50ppm over the full operating temperature range of -40°C to 85°C. The oscillator features an Enable/Disable function for power management.
The oscillator is housed in a compact 4-SMD, No Lead package measuring 7.00mm x 5.00mm x 1.80mm, suitable for surface mount assembly. The package is RoHS3 compliant and has an MSL of 1 (unlimited floor life).
The nominal supply voltage is 3.3V.
4-SMD, No Lead package with dimensions 7.00mm x 5.00mm x 1.80mm.
-40°C to 85°C.
Yes, it is RoHS3 compliant (unverified).
HCMOS and TTL.
±50ppm.
25 MHz.
