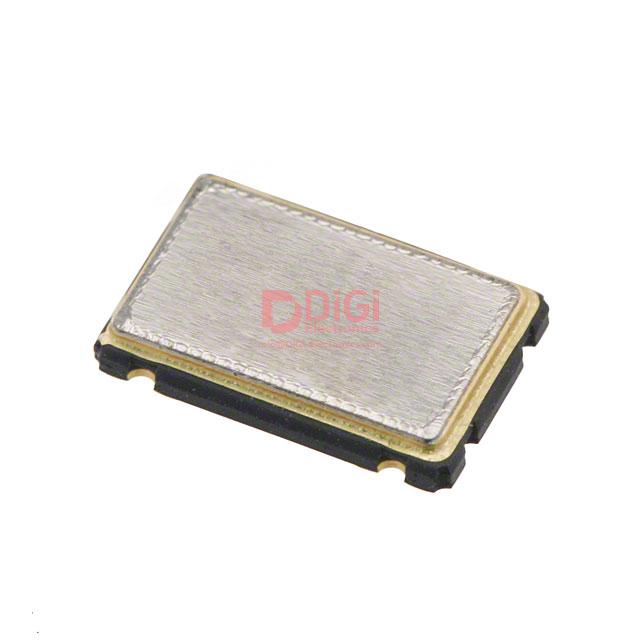

CB3-3C29M49120 The CTS-Frequency Controls CB3-3C29M49120 is an XO oscillator with a frequency of 29.4912 MHz. It features HCMOS/TTL output and operates at 5V.
Mfr Part #:

CB3-3C29M49120

Available from 1 distributors
Mfr Name: CTS-Frequency Controls
CTS-Frequency Controls
The CTS-Frequency Controls CB3-3C29M49120 is an XO oscillator with a frequency of 29.4912 MHz. It features HCMOS/TTL output and operates at 5V.
✓ Total Stock: 915 pcs
$ Price Range: $0.50

CB3-3C29M49120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
915 pcs
On Request
915 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CB3-3C29M49120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Frequency
Frequency Stability
Function
Lead Style
Mounting Type
Operating Temperature
Output
SVHC Present
Supply Voltage
Tape & Reel
Type
View Similar Products (0)

CB3-3C29M49120 Description

Short technical summary and product information.

This CB3-3C29M49120 from CTS-Frequency Controls is a standard XO (crystal oscillator) designed for electronic circuits requiring a stable frequency source. It operates at a nominal frequency of 29.4912 MHz with a supply voltage of 5V.



The oscillator provides HCMOS and TTL compatible outputs, making it suitable for a wide range of digital applications. Its frequency stability is rated at ±50ppm, ensuring reliable performance within its operating temperature range of -20°C to 70°C. The maximum supply current is 50mA.



Packaged in a 4-SMD, No Lead surface mount configuration, this component is designed for automated assembly processes. The 'Enable/Disable' function allows for control over the oscillator's output, providing flexibility in system design. The product status is active, indicating ongoing availability.

CB3-3C29M49120 Quick Information

Product Type: XO Oscillator
Series: CB3
Canonical Name: CTS-Frequency Controls CB3-3C-29M49120 XO Oscillator
Subcategory: XO (Standard)

CB3-3C29M49120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CB3-3C29M49120 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

CB3-3C29M49120 Features

  • 29.4912 MHz nominal frequency output.
  • HCMOS and TTL compatible output signals.
  • Operates from a 5V supply voltage.
  • Frequency stability of ±50ppm.
  • Surface mount 4-SMD, No Lead package.

CB3-3C29M49120 Applications

  • Suitable for digital timing circuits.
  • Used in embedded system designs.
  • Ideal for clock generation needs.
  • Applicable in communication modules.

CB3-3C29M49120 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output frequency of the CB3-3C29M49120?

29.4912 MHz.

What output logic types are supported?

HCMOS and TTL.

What is the supply voltage requirement?

5V.

What is the frequency stability?

±50ppm.

What is the operating temperature range?

-20°C to +70°C.

What is the package type?

4-SMD, No Lead, Surface Mount.

Does the oscillator have an enable/disable function?

Yes, it has an Enable/Disable function.
