| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
690 pcs
|
690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Range | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range (Unspecified condition) | |
| Output | |
| Phase Jitter | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width | |
| operating_temperature_range (Nominal @ Industrial) |

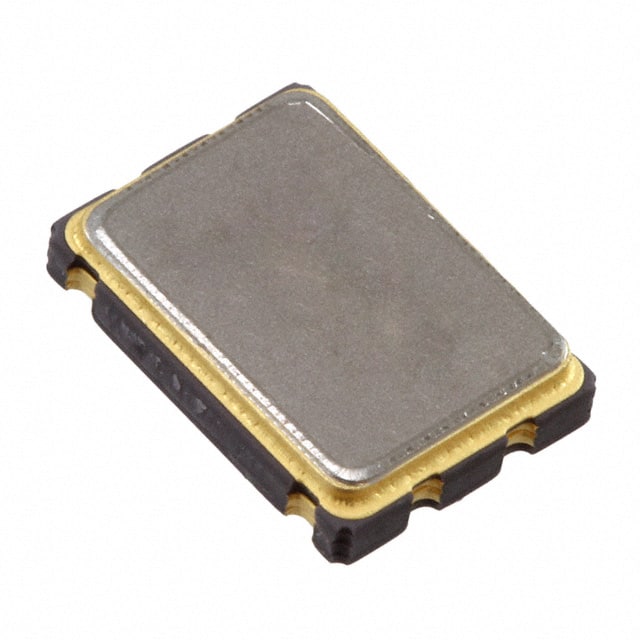

The CB2V5-3C-25M0000 is a 25 MHz clock oscillator from CTS-Frequency Controls, part of the CB2V5 series. It provides HCMOS and TTL compatible outputs with a typical phase jitter of 500fs. The oscillator operates from a 2.5V supply and draws 15mA typical current.
Frequency stability is ±50ppm over the operating temperature range of -20°C to +70°C. The device features an enable/disable function for power management. It is housed in a compact 7.0mm x 5.0mm surface mount ceramic package with a height of 1.8mm.
This oscillator is suitable for a variety of applications including microcontrollers, FPGAs, wireless communication, networking equipment, and data communications. It is supplied in tape and reel packaging for automated assembly.
The operating voltage is 2.5V.
It comes in a 4-SMD, No Lead surface mount package with dimensions 7.00mm x 5.00mm x 1.80mm.
The operating temperature range is -20°C to 70°C.
It is listed as RoHS3 Compliant, but this status is unverified.
The output is HCMOS and TTL compatible.
The frequency stability is ±50ppm.
The typical phase jitter is 500fs.
