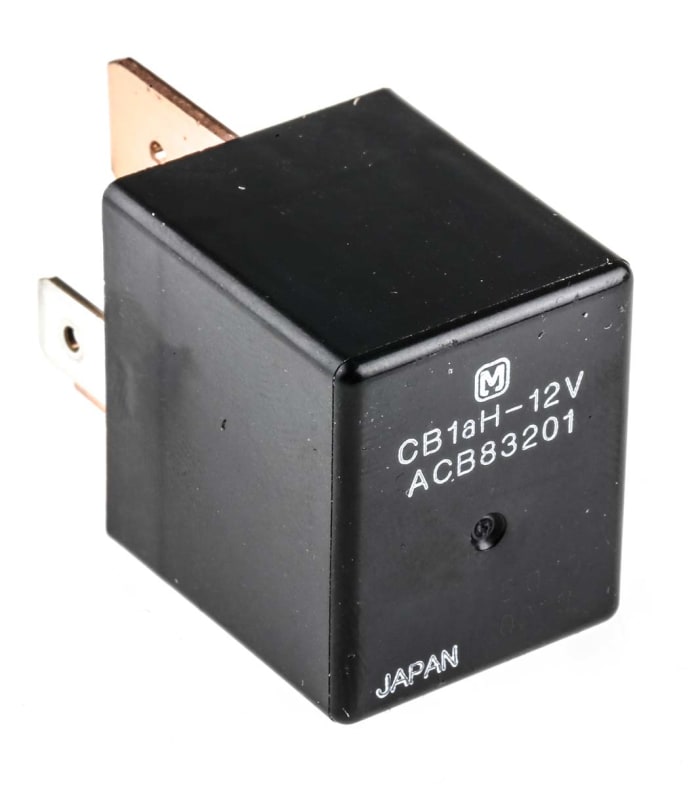

The Panasonic CB1AH-12V is a high-power automotive relay designed for demanding applications. It features a 12VDC coil voltage and a robust 70A switching current capacity, making it suitable for high-current switching tasks.
This relay utilizes a SPST-NO (1 Form A) contact configuration and offers a switching voltage of 14VDC. It operates within a wide temperature range of -40°C to 85°C and has a coil power of 1.8W with a resistance of 103Ω. The isolation between coil and contact is rated at 500Vrms.
Designed with a compact footprint, the CB1AH-12V has dimensions of 25.5mm in height, 22mm in depth, and 26.5mm in length. It features a plug-in termination style for easy integration and is socketable. The contact material is silver alloy, ensuring reliable performance.
Typical applications for this relay include automobiles, construction equipment, and agricultural equipment where high switching capacity and reliability are essential. It is manufactured in Japan.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The maximum switching current is 70A.
The contact configuration is SPST-NO (1 Form A).
The operating temperature range is -40°C to 85°C.
It is socketable.
The termination style is Plug In, Quick Connect - Multiple Sizes.
