| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,011 pcs
|
1011 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,011 pcs
|
1011 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Soldering Method | |
| Tape & Reel | |
| Terminal Finish | |
| Termination | |
| Test Voltage | |
| Tolerance | |
| Voltage Derating | |
| Voltage Rating | |
| Width |

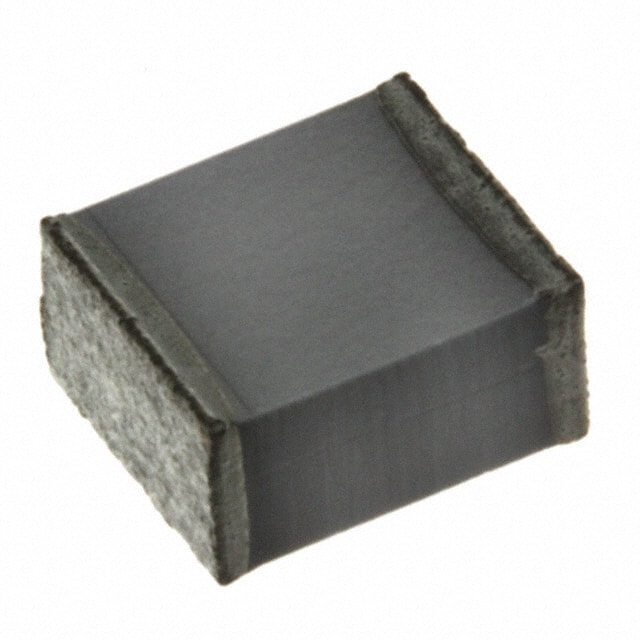

The Kyocera AVX CB042D0334JBC is a surface mount film capacitor with a capacitance of 0.33 µF and a voltage rating of 63 VDC. It features a ±5% tolerance and is constructed with metallized Polyethylene Terephthalate (PET) dielectric in a stacked configuration. The capacitor is housed in a 2220 (5750 Metric) package with solder pad terminations.
This component is designed for general purpose applications where miniaturization and surface mount assembly are required. It offers a wide operating temperature range from -55°C to 125°C and is suitable for IR or vapor phase reflow soldering. The dielectric material provides self-healing properties, contributing to reliable open failure mode and overall reliability.
The capacitor has a maximum dissipation factor of 100 x 10^-4 at 1 kHz and a minimum insulation resistance of 1000 MΩ. It is supplied in tape and reel packaging for automated placement. The part is lead-free and RoHS3 compliant.
The capacitance is 0.33 µF with a tolerance of ±5%.
The rated voltage is 63 VDC.
The dielectric material is metallized Polyethylene Terephthalate (PET).
The package is 2220 (5750 Metric) and the mounting type is surface mount.
The operating temperature range is -55°C to 125°C.
