| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance (Minimum @ C ≤ 0.33 µF, 20 °C, 1 min charge at 10 Vdc) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Temperature Derating | |
| Termination | |
| Termination Style | |
| Test Voltage | |
| Tolerance | |
| Voltage Rating | |
| Width |

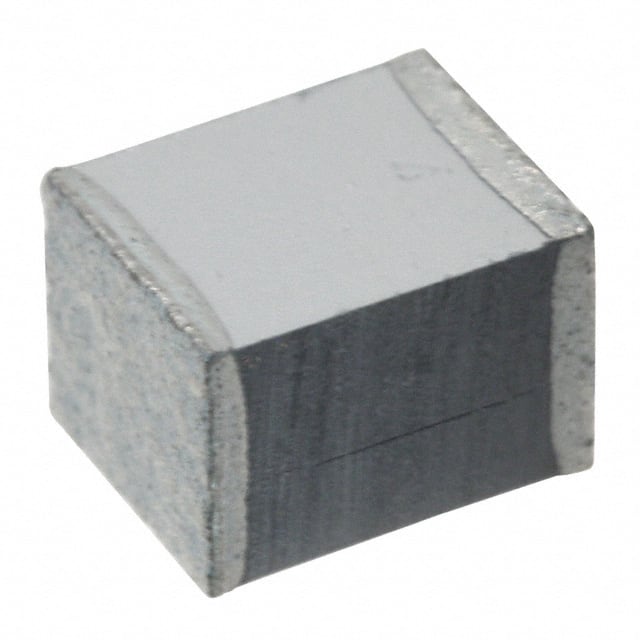

The CB027C0473JBA is a surface-mount film capacitor from Kyocera AVX, offering a nominal capacitance of 0.047 µF with a ±5% tolerance and a DC voltage rating of 25V. It utilizes a stacked metallized construction with Polyethylene Naphthalate (PEN) and polyester dielectrics, providing self-healing properties and reliable open-failure mode.
This capacitor operates over a wide temperature range of -55°C to 125°C and features a low dissipation factor of less than 100 x 10^-4 at 1 kHz. Insulation resistance exceeds 1000 MΩ for capacitances ≤0.33 µF and >400 seconds for higher values when tested at 10Vdc. The component is designed for general-purpose use in low-voltage applications where miniaturization is required.
The part is housed in a 1210 (3225 Metric) SMD package with 100% matte tin solder pad terminations. It is suitable for IR or vapor phase reflow soldering and is available in tape and reel packaging for automated assembly. No piezoelectric effect and excellent thermal shock resistance make it a robust choice for demanding environments.
The nominal capacitance is 0.047 µF.
The DC voltage rating is 25V.
The dielectric is a combination of Polyester and Polyethylene Naphthalate (PEN), with metallized stacked construction.
The tolerance is ±5%.
It uses a 1210 (3225 Metric) surface mount package.
The operating temperature range is -55°C to 125°C.
The dissipation factor is less than 100 x 10^-4 at 1 kHz.
