| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2,488 pcs
|
2488 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
238 pcs
$0.03
|
238 pcs |
$0.03
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Circuit Type | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Elements | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

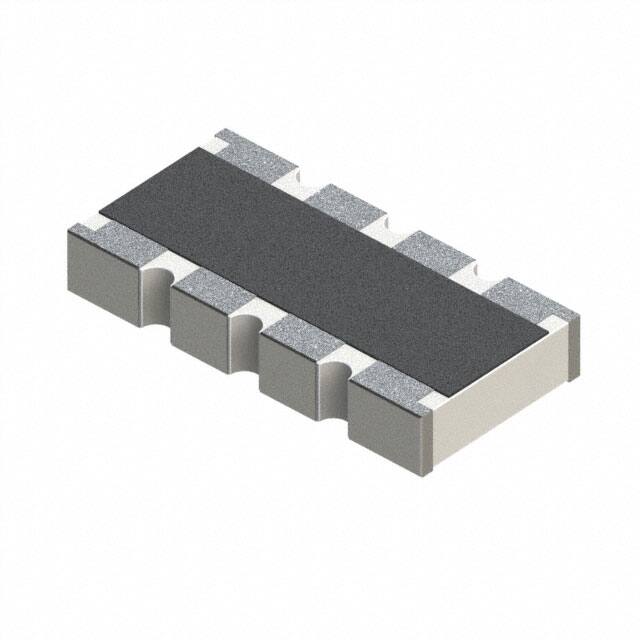

The Bourns CAY16-1002F4LF is a thick film resistor array featuring four isolated resistive elements. Each element offers a resistance value of 10k Ohms with a tight tolerance of ±1% and a temperature coefficient of ±200ppm/°C. This array is housed in a compact 1206 package, suitable for surface mount applications.
With a power rating of 62.5mW per element and a package power rating of 250mW at 70°C, the CAY16-1002F4LF is designed for moderate power requirements. It operates within a temperature range of -55°C to 125°C and has a maximum working voltage of 50V. The convex termination style ensures compatibility with standard reflow soldering processes.
This resistor array is ideal for applications requiring multiple discrete resistors in a single, space-saving component. Its isolated configuration provides flexibility in circuit design, preventing unwanted coupling between elements. The 1206 package size and surface mount capability make it suitable for high-density printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns CAY16-1002F4LF resistor array has a resistance value of 10k Ohms.
The resistors in the CAY16-1002F4LF array have a tolerance of ±1%.
The CAY16-1002F4LF array contains 4 isolated resistors.
The operating temperature range for the CAY16-1002F4LF resistor array is -55°C to 125°C.
The CAY16-1002F4LF resistor array is supplied in a 1206 package.
The power rating per element for the CAY16-1002F4LF resistor array is 62.5mW.
