| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,436 pcs
|
6436 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Halogen Free | |
| Interface | |
| Memory Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Taps | |
| Operating Temperature | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Taper | |
| Temperature Coefficient | |
| Temperature Coefficient (Typ) | |
| Tolerance | |
| Voltage |

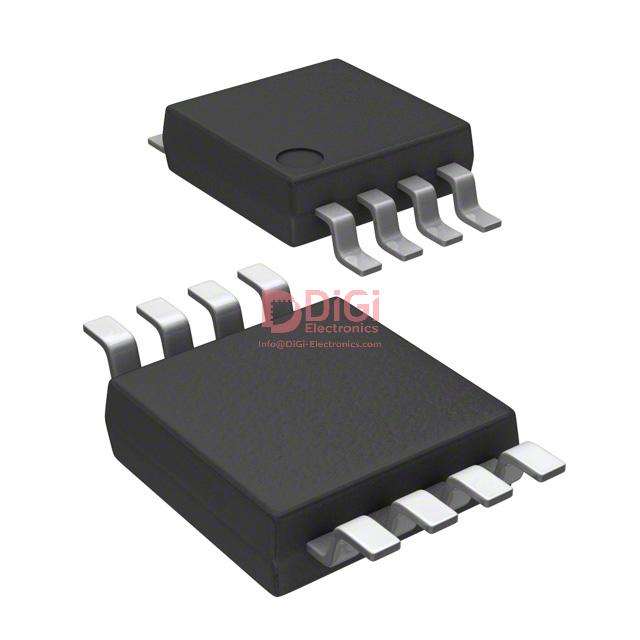

The CAT5112ZI-50-GT3 from ON Semiconductor is a single digital potentiometer designed as an electronic replacement for mechanical potentiometers. It features a 32-position linear taper resistor array with a total resistance of 50kΩ.
This device operates from a single supply voltage ranging from 2.5V to 6.0V and offers a buffered wiper output. The wiper setting is stored in non-volatile EEPROM memory, ensuring it is retained when power is removed and automatically recalled upon power-up. The interface is an increment/decrement serial interface controlled by CS, U/D, and INC pins.
Ideal for automated adjustments on high-volume production lines and applications where periodic adjustment is difficult or hazardous, the CAT5112ZI-50-GT3 is suitable for offset, gain, and zero control, as well as contrast, brightness, and volume adjustments.
The digital potentiometer is available in an 8-MSOP package and is surface-mount compatible. It operates within a temperature range of -40°C to 85°C.
The CAT5112ZI-50-GT3 has a resistance of 50kΩ.
The CAT5112ZI-50-GT3 features 32 taps.
The operating voltage range for the CAT5112ZI-50-GT3 is 2.5V to 6V.
The CAT5112ZI-50-GT3 operates from -40°C to 85°C.
The CAT5112ZI-50-GT3 is supplied in an 8-MSOP package.
Yes, the CAT5112ZI-50-GT3 has non-volatile EEPROM memory for wiper storage.
