| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimming | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage |
The On Semiconductor CAT4106YP-T2 is an integrated circuit designed as a DC DC regulator for LED driving applications. It features a step-up (boost) topology and operates with an input voltage of 3V, delivering a current of up to 175mA. The device supports PWM dimming for precise light control and includes internal switches.

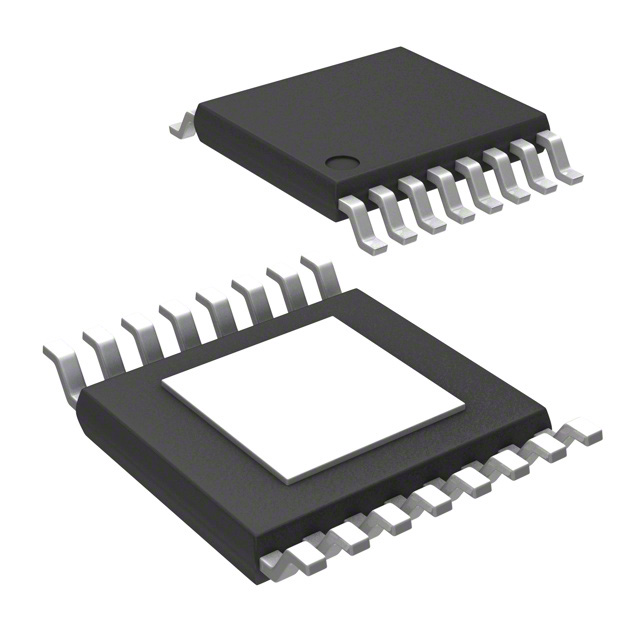

This LED driver is suitable for applications such as backlighting and general lighting. It operates within a temperature range of -40°C to 85°C (TA). The component is housed in a 16-TSSOP-EP package, designed for surface mounting.
Key electrical characteristics include a switching frequency of 1MHz and four output channels. The RoHS status is compliant with RoHS3 standards, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V.
175mA per channel.
4 outputs.
1MHz.
-40°C to 85°C.
16-TSSOP-EP (exposed pad).
Yes, PWM dimming.
