| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,210 pcs
|
11210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,931 pcs
|
3931 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Max Working Voltage | |
| Max. Overload Voltage | |
| Mounting Type | |
| Number of Elements | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Package Power Rating | |
| Power Per Element | |
| Resistance (Ohms) | |
| Resistance Range | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width | |
| Zero-Ohm Jumper |

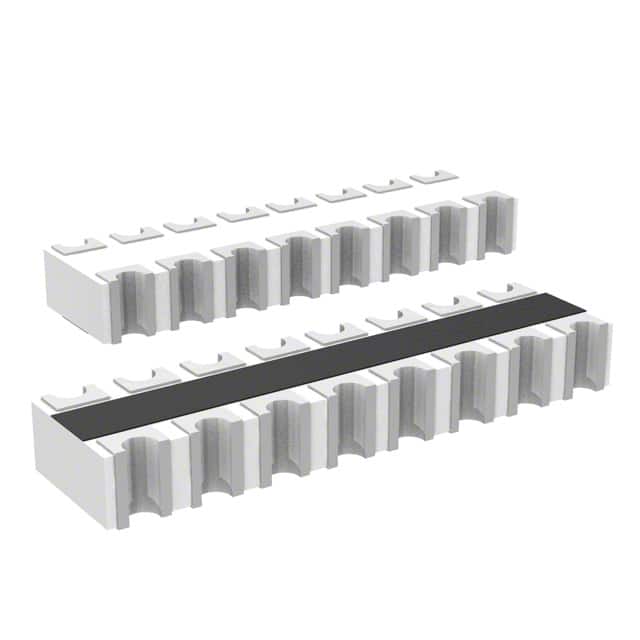

This Bourns CAT16-330J8LF is a high-quality resistor array from the CAT/CAY 16 series, designed for surface mount applications. It comprises 8 isolated resistors, each offering a resistance value of 33 Ohms with a tolerance of ±5%. The array is housed in a 2506 package with concave, long side terminals, making it suitable for various electronic circuits.
The component operates within a temperature range of -55°C to 125°C and has a power rating per element of 62.5mW, with a package power rating of 250mW at 70°C. Its temperature coefficient of resistance is ±200ppm/°C. The maximum working voltage is 50V, and the maximum overload voltage is 100V.
With its robust construction and reliable performance characteristics, this resistor array is a suitable choice for applications requiring precise resistance values and compact integration. The surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns CAT16-330J8LF resistor array has a resistance value of 33 Ohms.
The tolerance for the resistors in the CAT16-330J8LF array is ±5%.
The CAT16-330J8LF resistor array contains 8 isolated resistors.
The operating temperature range for the CAT16-330J8LF resistor array is -55°C to 125°C.
The Bourns CAT16-330J8LF resistor array is supplied in a 2506 package.
The power rating per element for the CAT16-330J8LF resistor array is 62.5mW.
