| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,849 pcs
|
4849 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,847 pcs
|
4847 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Elements | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

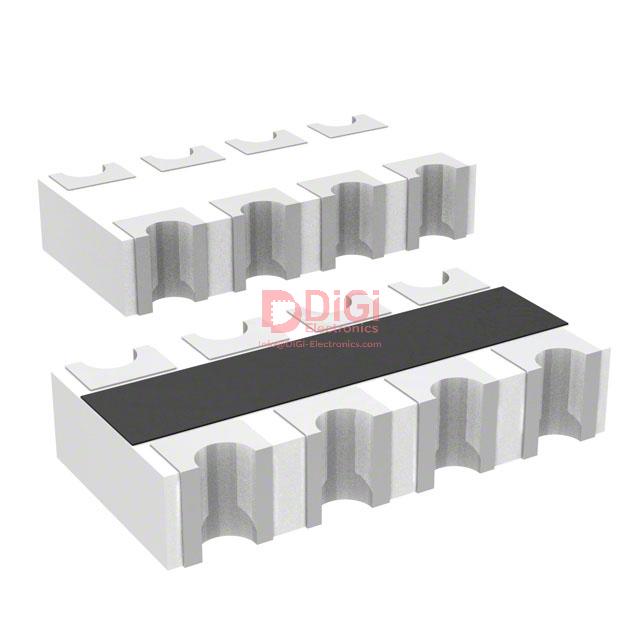

This Bourns CAT16-271J4LF is a surface-mount resistor network/array. It comprises 4 isolated resistor elements, each rated at 270 Ohms with a tolerance of +/-5%. The component is housed in a 1206 package, suitable for automated assembly processes.
The operating temperature range for this device is -55°C to 125°C, with a temperature coefficient of +/-200ppm/°C. Each resistor element has a power rating of 62.5mW. The array has 8 pins and is designed for surface mounting.
Compliance information indicates RoHS3 compliance and an MSL 1 rating. The REACH status is unaffected. This component is suitable for various electronic applications requiring integrated resistor networks.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns CAT16-271J4LF resistor network has a resistance value of 270 Ohms.
The tolerance of the resistors in the CAT16-271J4LF array is +/-5%.
The CAT16-271J4LF resistor network contains 4 isolated resistors.
The Bourns CAT16-271J4LF is supplied in a 1206 package.
The operating temperature range for the CAT16-271J4LF is -55°C to 125°C.
Yes, the Bourns CAT16-271J4LF is RoHS3 compliant.
