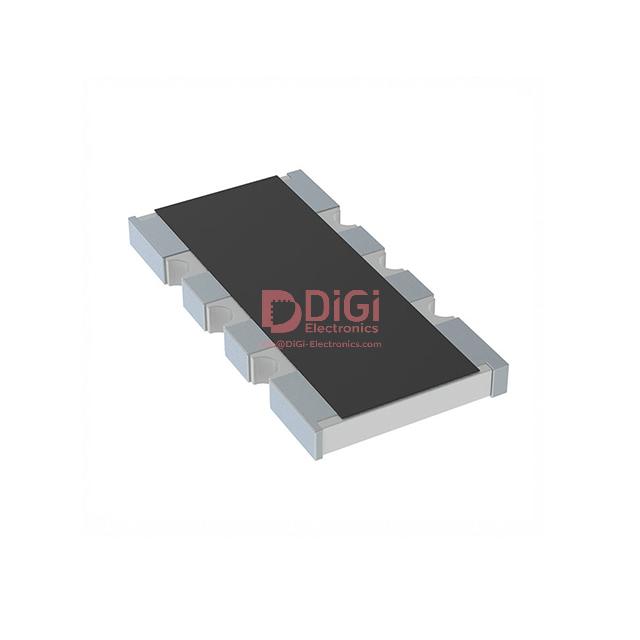

CAT16-270J4LF The Bourns CAT16-270J4LF is a 4-resistor network array with 27 Ohms resistance and ±5% tolerance. It features a surface mount 1206 package.
Mfr Part #:

CAT16-270J4LF

Available from 2 distributors
Mfr Name: Bourns
Bourns
The Bourns CAT16-270J4LF is a 4-resistor network array with 27 Ohms resistance and ±5% tolerance. It features a surface mount 1206 package.
✓ Total Stock: 19,426 pcs
$ Price Range: $0.05

CAT16-270J4LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
9,713 pcs
On Request
9713 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9,713 pcs
On Request
9713 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CAT16-270J4LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CAT16-270J4LF Description

Short technical summary and product information.

The Bourns CAT16-270J4LF is a resistor network/array designed for surface mount applications. This component features 4 isolated resistors, each with a resistance value of 27 Ohms and a tolerance of ±5%. The operating temperature range is -55°C to 125°C, with a temperature coefficient of ±200ppm/°C.



The device is housed in a 1206 (3216 Metric) package with concave, long side terminals. Its dimensions are 3.20mm in length and 1.55mm in width, with a height of 0.60mm. The power rating per element is 62.5mW.



This resistor array is suitable for various electronic circuits requiring multiple discrete resistors in a single package. Its isolated circuit configuration provides flexibility in design. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

CAT16-270J4LF Quick Information

Product Type: Resistor Network/Array
Series: CAY16
Canonical Name: Bourns CAT16-270J4LF Resistor Network/Array
Subcategory: Resistor Networks, Arrays

CAT16-270J4LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CAT16-270J4LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CAT16-270J4LF Features

  • Features 4 isolated resistors.
  • Resistance value of 27 Ohms.
  • Tolerance of ±5%.
  • Operating temperature range -55°C to 125°C.
  • Surface mount 1206 package.

CAT16-270J4LF Applications

  • Suitable for general purpose circuits.
  • Used in signal conditioning applications.
  • Ideal for space-constrained designs.
  • Provides multiple resistors in one package.

CAT16-270J4LF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Bourns CAT16-270J4LF?

The resistance value is 27 Ohms.

What is the tolerance of the Bourns CAT16-270J4LF resistor network?

The tolerance is ±5%.

How many resistors are in the Bourns CAT16-270J4LF array?

There are 4 isolated resistors in the array.

What is the operating temperature range for the CAT16-270J4LF?

The operating temperature range is -55°C to 125°C.

What type of package is the Bourns CAT16-270J4LF in?

It is in a 1206 (3216 Metric) package with concave, long side terminals.

What is the power rating per element for the CAT16-270J4LF?

The power rating per element is 62.5mW.
