| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Interface | |
| Mounting Type | |
| Number of Inputs | |
| Operating Temperature | |
| Proximity Detection | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage |
The CAP1203-1-AC3-TR is a capacitive touch sensor controller from Microchip Technology designed to detect touch inputs. It supports up to 3 capacitive touch buttons and communicates via an I²C or SMBus interface.
Electrical specifications include a supply voltage range of 3V to 5.5V and a typical supply current of 500µA. The device operates over an industrial temperature range of -40°C to 125°C, making it suitable for harsh environments.

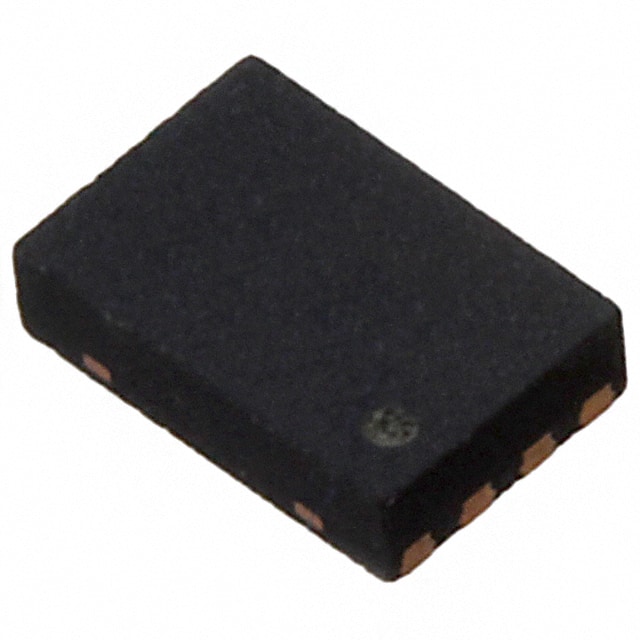

The controller is housed in a compact 8-WFDFN exposed pad package, with a supplier device package of 8-TDFN (3x3 mm). It is surface mountable, allowing for automated assembly. The device does not include proximity detection; it is designed for direct button sensing.
Typical applications include user interface controls, consumer electronics, and industrial panels where capacitive touch buttons are required. The I²C interface enables easy integration with microcontrollers and other digital systems.
3V to 5.5V.
-40°C to 125°C.
8-WFDFN exposed pad, with supplier device package 8-TDFN (3x3 mm).
The device is marked as RoHS3 compliant, but this is unverified.
I²C and SMBus.
3 inputs.
500µA typical.
