| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,718 pcs
|
1718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Interface | |
| LED Driver Channels | |
| Mounting Type | |
| Number of Inputs | |
| Operating Temperature | |
| Proximity Detection | |
| Supplier Device Package | |
| Type | |
| Voltage |
The CAP1188-1-CP-TR is a capacitive touch sensor controller from Microchip Technology that integrates eight capacitive touch inputs with eight LED driver channels. It supports multiple communication interfaces including I²C, SMBus, and SPI, making it suitable for a wide range of human-machine interface applications.
The device operates from a 3V to 3.6V supply voltage and draws a typical supply current of 500 µA. It includes proximity detection capability, enabling touchless wake-up or presence sensing. The operating temperature range spans -40°C to 125°C, allowing use in industrial and automotive environments.

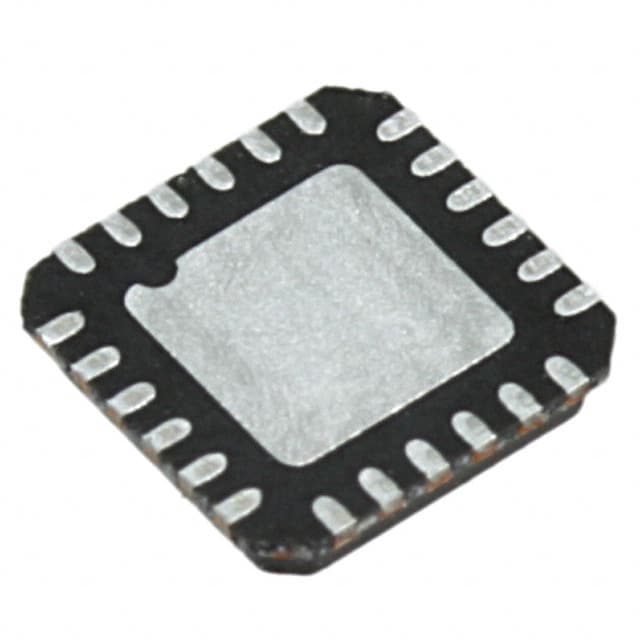

The CAP1188-1-CP-TR is housed in a 24-VFQFN exposed pad package with a 4x4 mm body (24-QFN) and is designed for surface mount assembly. The integrated LED driver channels can directly control indicators for touch feedback or status display.
The supply voltage range is 3V to 3.6V.
It comes in a 24-VFQFN Exposed Pad package (24-QFN, 4x4 mm).
The operating temperature range is -40°C to 125°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with official documentation.
It supports 8 capacitive touch inputs.
It supports I²C, SMBus, and SPI interfaces.
Yes, it includes proximity detection capability.
