| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,450 pcs
|
5450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Interface | |
| LED Driver Channels | |
| Mounting Type | |
| Number of Inputs | |
| Operating Temperature | |
| Proximity Detection | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The Microchip Technology CAP1166-1-BP-TR is an integrated circuit designed for capacitive touch sensing applications. This device offers 6 input channels for detecting touch and includes 6 LED driver channels. It operates within a supply voltage range of 3V to 3.6V and can function across an extended temperature range of -40°C to 125°C.
Connectivity is provided through I2C, SMBus, and SPI interfaces, allowing for flexible integration into various systems. The IC is packaged in a compact 20-VFQFN exposed pad measuring 4x4mm with a height of 0.83mm, suitable for surface mount applications. Its design supports proximity detection, making it versatile for user interface enhancements.
This component is ideal for applications requiring robust touch detection and user feedback mechanisms. The combination of multiple input channels, LED drivers, and standard communication interfaces makes it a suitable choice for consumer electronics, industrial controls, and other devices where intuitive user interaction is paramount.
The operating voltage range is 3V to 3.6V.

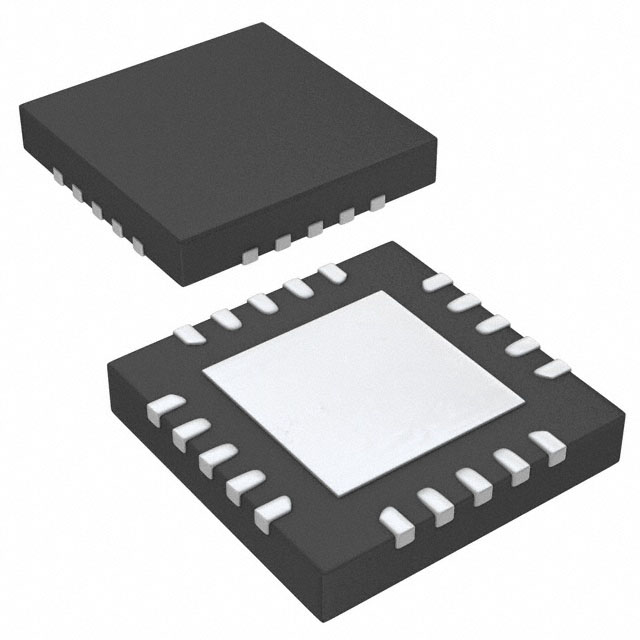

It is supplied in a 20-VFQFN Exposed Pad package, measuring 4mm x 4mm.
The operating temperature range is -40°C to 125°C.
It supports I2C, SMBus, and SPI interfaces.
There are 6 LED driver channels.
