| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
612,000 pcs
|
612000 pcs | On Request | 1 | On Request | On Request | 19+2 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Failure Rate | |
| Halogen Free | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Voltage Supply |

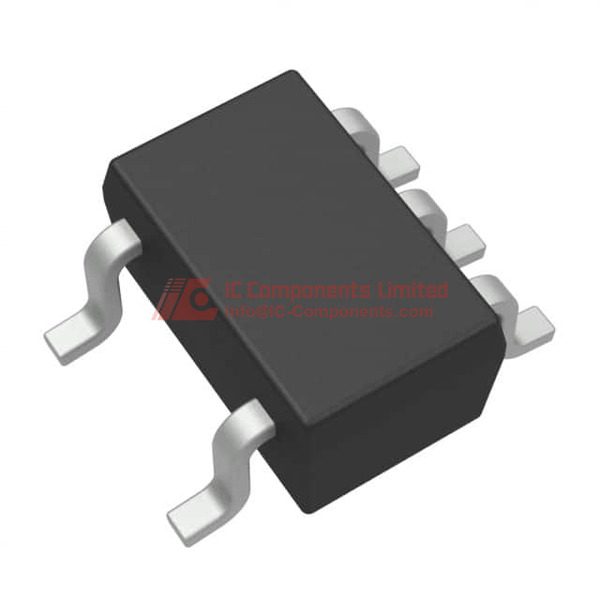

The Texas Instruments CAHCT1G125QDCKRNS is a single-channel, non-inverting buffer integrated circuit featuring a three-state output. This component is designed for reliable signal buffering in various electronic systems.
Key electrical specifications include a wide operating voltage range from 3V to 5.5V and a robust output current capability of 8mA for both high and low states. The device operates across a temperature range of -40°C to 125°C, making it suitable for demanding environments.
This buffer IC is part of the 74AHCT series and is qualified for automotive applications, meeting the AEC-Q100 standard. It is housed in a compact SC-70-5 surface-mount package, ideal for space-constrained designs. The three-state output allows for direct connection to shared lines or buses, simplifying system design.
Applications for the CAHCT1G125QDCKRNS include automotive electronics for signal buffering, industrial control systems requiring reliable signal integrity, and consumer electronics where compact components are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 5.5V
-40°C to 125°C
SC-70-5 surface mount
Buffer, non-inverting with 3-state output
8mA sink and source
Yes, AEC-Q100 qualified
1 bit per element
