| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,767 pcs
|
3767 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,001 pcs
|
2001 pcs | On Request | 1 | On Request | On Request | 1414+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Frequency | |
| Input | |
| Main Purpose | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Voltage |
The CAB4AZNRR is a DDR4 Register IC designed for use in DDR4 registered DIMMs (RDIMM) and load-reduced DIMMs (LRDIMM). It integrates a 32-bit 1:2 command/address buffer and a 1:4 differential clock buffer, enabling efficient memory subsystem clock distribution.
Key specifications include a data rate of 2.4 Gbps, a supply voltage of 1.2 V, and CMOS input/output logic. The device operates over a temperature range of -40°C to 95°C, making it suitable for industrial environments.

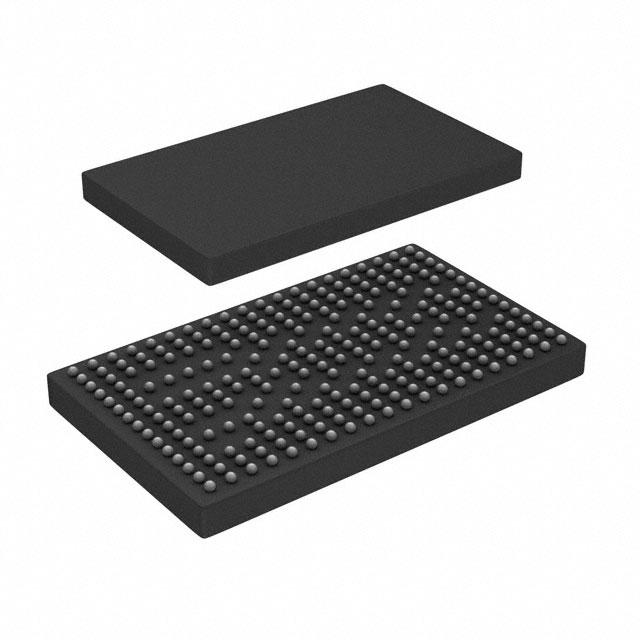

The IC is housed in a 253-LFBGA surface-mount package (253-NFBGA 13.5x8) and is JEDEC DDR4 RCD01 compliant. It supports features such as programmable driver strength, address mirroring and inversion, and full-parity operation.
Typical applications include DDR4 RDIMM and LRDIMM memory modules operating up to DDR4-2400, as well as 3D-stacked DIMMs. The device is characterized for use in memory subsystems requiring high-speed command/address and clock buffering.
1.2 V.
-40°C to 95°C.
253-LFBGA (253-NFBGA 13.5x8).
RoHS3 Compliant (unverified).
2.4 Gbps.
Surface Mount.
CMOS.
