| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,079 pcs
|
1079 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Noise Figure | |
| Operating Temperature |

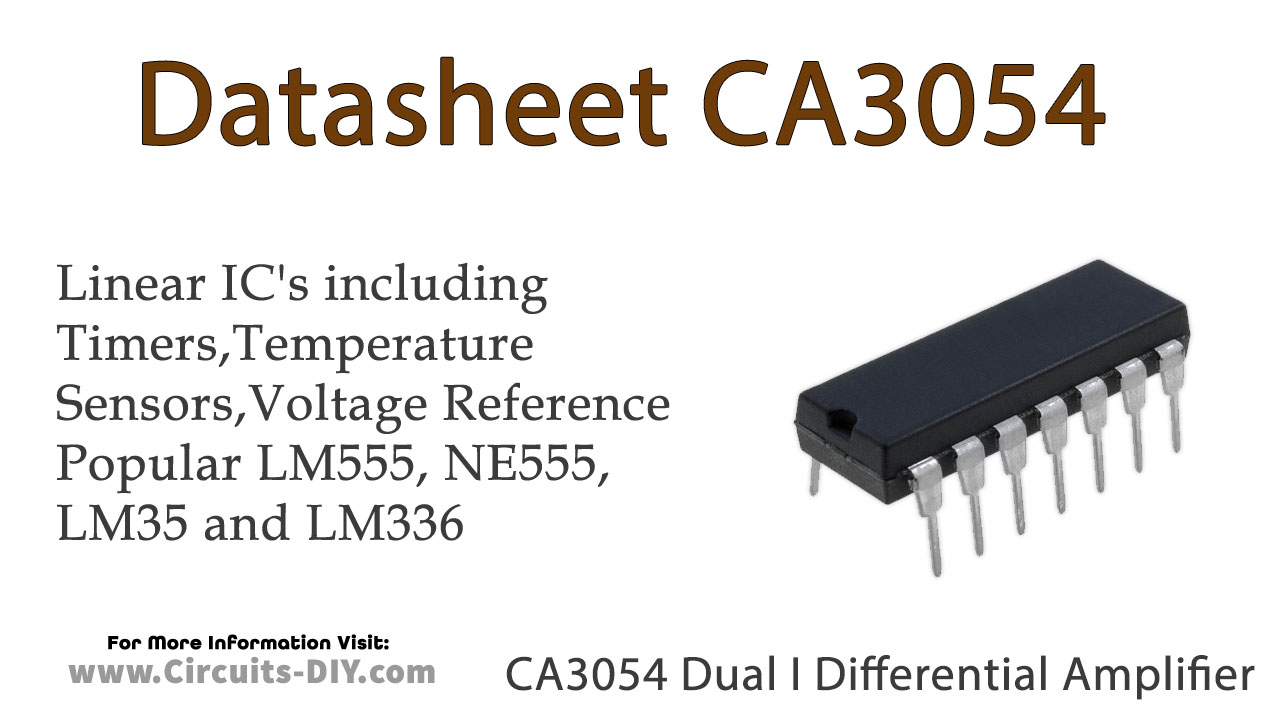

The CA3054 is a dual independent differential amplifier IC manufactured by SIL. It consists of two independent differential amplifiers on a common monolithic substrate, utilizing six NPN transistors. This general-purpose device offers low 1/f noise and a transition frequency (fT) in excess of 300MHz, making it suitable for applications ranging from DC to 120MHz.
The monolithic construction ensures close electrical and thermal matching between the amplifiers, which is particularly beneficial for dual-channel applications requiring matched performance. Bias and load resistors are omitted to provide maximum application flexibility. The CA3054 is designed for applications such as dual sense amplifiers, dual Schmitt triggers, product detectors, and balanced modulators/demodulators.
Key features include independently accessible inputs and outputs, and a specified operating temperature range of 0°C to 85°C. The device's design allows for flexible integration into various circuit configurations where precise differential amplification is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The transition frequency (fT) of the CA3054 is in excess of 300MHz.
The CA3054 operates within a temperature range of 0°C to 85°C.
The CA3054 is a dual independent differential amplifier.
Applications include dual sense amplifiers, dual Schmitt triggers, product detectors, and balanced modulators.
