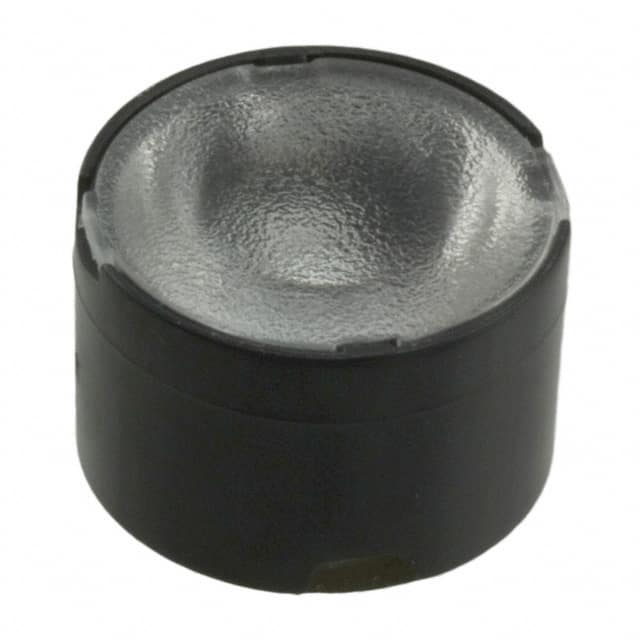

The Ledil CA11136_LO2-W is a clear optical lens designed for single LED applications. It offers a wide beam pattern with a typical angle of 44 degrees when used with Osram Golden Dragon+ LEDs. The lens assembly has a height of 13.9 mm and a diameter of 21.6 mm.
Constructed from PMMA, the lens is designed to be mounted using an adhesive tape, simplifying the integration process. The holder is made of PC, and the tape is PU. This lens is optimized for specific LED types, providing a focused light distribution suitable for various illumination tasks.
Simulated optical results show a 34° beam angle for the XHP50.3 HI LED, with 88% efficiency and a peak intensity of 1.9 cd/lm. The lens is supplied in boxes of 2880 units.
This component is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical beam angle is 44.0° for Osram Golden Dragon+ LEDs and 34.0° for LED XHP50.3 HI.
The lens has a diameter of 21.6 mm and a height of 13.9 mm.
The lens is made of PMMA, the holder is PC, and the tape is PU.
The lens is mounted using an adhesive tape.
Yes, the RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
