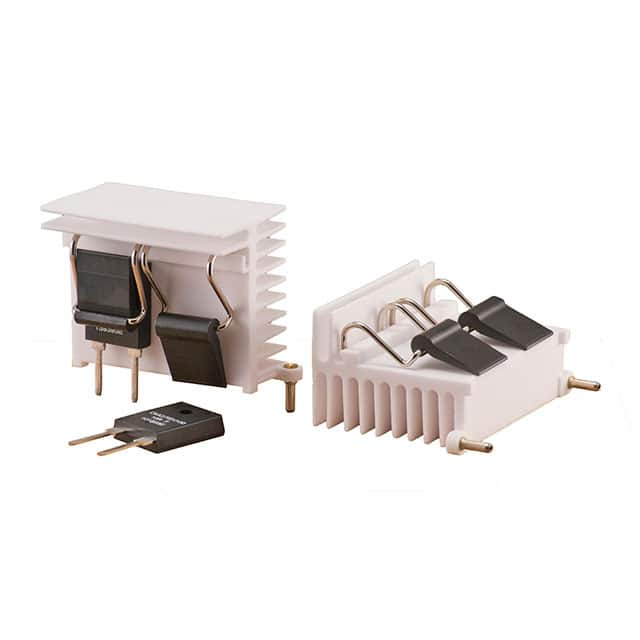

This is a ceramic heat sink from Ohmite, part number CA-TX2-050-E. It is a board level vertical heat sink with rectangular fins and a nickel finish. The heat sink has a fin height of 41.91mm, width of 28.45mm, and length of 50.04mm.
Thermal performance: typical thermal resistance of 5.80°C/W in natural convection and 3.00°C/W at 400 LFM forced air flow. Power dissipation is 7.0W at a 50°C temperature rise.
Designed to cool TO-247 and TO-264 semiconductor packages. Attachment is via two clips and a PC pin for secure mounting. The ceramic material provides good thermal conductivity and electrical insulation.
TO-247 and TO-264 packages.
5.80°C/W in natural convection and 3.00°C/W at 400 LFM forced air flow.
7.0W at a 50°C temperature rise.
Ceramic material with nickel finish.
Using two clips and a PC pin.
RoHS3 compliant (unverified).
Fin height 41.91mm, width 28.45mm, length 50.04mm.
