Mfr Part #:

CA-TX1-050-E

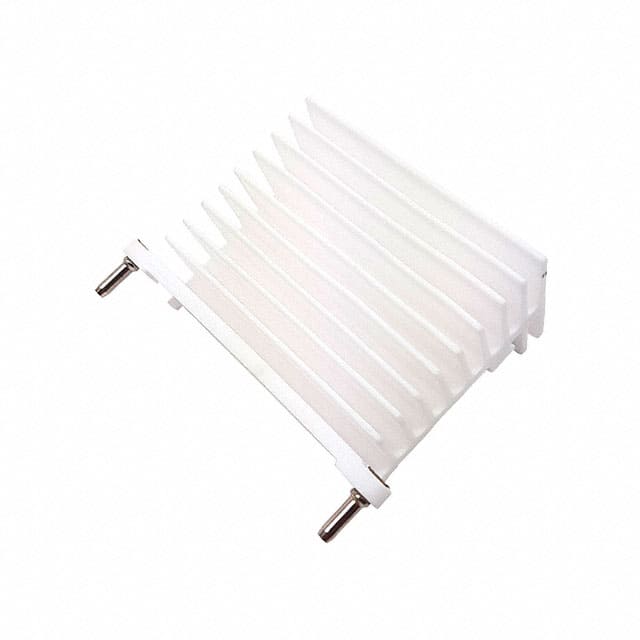

Name: CA-TX1-050-E
Brand: Ohmite
SKU: CA-TX1-050-E

Mfr Name: Ohmite

Description:

CERAMIC HEATSINK WITH 1 CLIP

Stock on Request

CA-TX1-050-E Description

Short technical summary and product information.

CERAMIC HEATSINK WITH 1 CLIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	Ohmite
Attachment Method	Clip and PC Pin
Fin Height	1.650" (41.91mm)
Length	1.970" (50.04mm)
Material	Ceramic
Material Finish	Nickel
Package Cooled	TO-247, TO-264
Power Dissipation @ Temperature Rise	7.0W @ 50°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	3.00°C/W @ 400 LFM
Thermal Resistance @ Natural	5.80°C/W
Type	Board Level, Vertical
Width	1.120" (28.45mm)
