| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,650 pcs
|
7650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

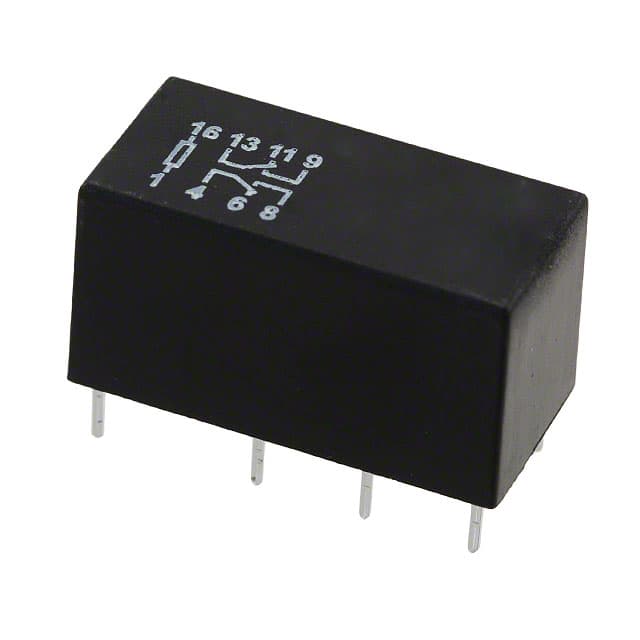

The TE Connectivity C93401 is a telecom relay designed for signal applications. It features a DPDT (2 Form C) contact configuration, capable of switching up to 2A.
The relay operates on a 5VDC coil voltage with a nominal coil current of 30 mA. It requires a minimum operate voltage of 3.6 VDC and has a maximum release voltage of 0.5 VDC. The operate time is 5 ms, and the release time is 3 ms.
Contact materials include Silver Nickel (AgNi) and Gold (Au). The switching voltage is rated for a maximum of 250VAC or 220VDC. The relay is designed for through-hole mounting with PC pin termination.
Operating temperature ranges from -55°C to 85°C. Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 5 VDC.
It has a DPDT (double pole double throw) contact form.
The contact rating is 2 A.
It can switch up to 250 VAC or 220 VDC.
It operates within -55°C to 85°C.
It uses through-hole mounting with PC pins.
