| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shock Severity | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Vibration Sensitivity | |
| Voltage Proof (14S shell) | |
| Voltage Rating | |
| Voltage Rating (14S shell) |

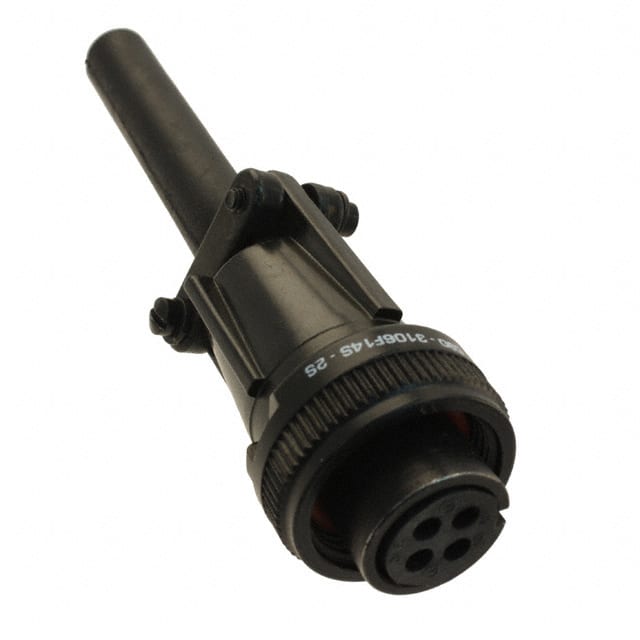

The C90-3106F14S-2S is a circular connector plug from Harwin's C90 series, designed to meet MIL-DTL-5015 standards. It features 4 female socket contacts in a 14S-2 shell size, with a threaded coupling mechanism and keyed orientation for secure mating. The connector is made with an aluminum alloy shell finished in black zinc cobalt alloy, providing durability and corrosion resistance. Contacts are silver-plated copper alloy, terminated via solder cups, suitable for 16-22 AWG wire. The free-hanging (in-line) mounting style includes a backshell, cable clamp, and coupling nut. It is rated for 13A current and 200VAC/250VDC, with an operating temperature range of -55°C to +125°C. The connector is sealed to IP67 for dust and water ingress protection, and is RoHS compliant. Applications include industrial, military, and harsh environment connections where reliability is critical.
4 positions (power).
13A.
200VAC, 250VDC.
Free hanging (in-line).
IP67 - dust tight and waterproof.
-55°C to +125°C.
Solder cup.
